Model RD-150

SAMmobile 150 (RD-150)Vehicle Mounted Radiation Detection System (VMRDS)

The Model RD-150 Vehicle Based Radiation Detection System (VMRDS) offers users a quick integration of spectroscopic nuclear detection capability in existing response vehicles. Large volume, highly sensitive gamma and neutron detectors are integrated into shock-absorbent packaging for reliable mobile monitoring. The unified monitoring system is scalable with multiple detector point options in your existing vehicles. Results in simple form, backed by full spectroscopic reports and identification details, are available to the vehicle operator in real time.


The Model RD-150 VMRDS is uniquely flexible, allowing quick setup and transfer from different vehicles. The modular approach with independent detector packaging enables a plug-and-play simplicity to adapt vehicles to a particular application. Detector positioning allows optimized detection geometry for pinch points, freeway passing, lot scans, or other clandestine monitoring requirements. The detector modules are tied to a comprehensive user interface running locally or remotely. The scalability of systems with this size and sensitivity is a first in the mobile detection industry.

The most popular User Interface option for the Model RD-150 is PeakGO, the Berkeley Nucleonics Smartphone Application which conveniently illustrates isotope and isotope class-specific, color-coded peaks, and bar graphs. The app is free and included with all shipments of Berkeley Nucleonics’ Nuclear Detection and Isotope Identification products. The rich feature-set in PeakGO includes GPS Tagging, photo/video report appending, pop-up isotope help and ‘Push-to-Reachback’ functionality. In addition to PeakAbout, users may elect to integrate alarms or push-functions to existing communications and reporting systems.

Overview

Overview

Quick Specs

Applications

  • Isotope Identification: NaI
  • Detector Size: 2x4x16 & 4x4x16
  • FEMA RadResponder Enabled
  • Wifi, Bluetooth, GPS, and USB
  • Homeland Security
  • Emergency Responder
  • Safeguard and Nuclear Security
  • Radiological Area Mapping
  • Geological Radiation Survey

Features
  • Vehicle Mounted Radiation Detection
  • Integrate with Any Existing Vehicle
  • Vehicle, Marine, Aerial, or Crane Variants
  • Background Auto-Correction
  • Industry Lowest Sigma Trigger
  • Industrial, Shock Absorption
  • Gamma and Neutron Detection
  • PeakAbout App Integration
  • GPS Integrated Mapping
Applications
  • Large Public Event Monitoring
  • Industrial Accident Response
  • Plume/Background Mapping and Modeling
  • Large Facility Perimeter Monitoring
  • Vehicle/Marine/Airborne Detection
  • Locate Illicit Transportation of Radioactive Sources
  • Web-Based Training @ academy.berkeleynucleonics.com
System Hardware

At the core of the Model RD-150 is a high-performance MCA featuring DSP electronics and a high-voltage control system for an optimum dynamic range. The digital processor is supplemented with an analog anode output to enhance timing functionality. The processor is a 32-Bit RISC with excellent data acquisition and processing functionality. The entire electronic module is packaged in a shock-reducing enclosure. The photomultiplier tube and NaI detector are matched before final hermetic seal to ensure that efficiency is optimized.

System Firmware

The data processing and management is extremely efficient and leverages several proprietary processing and post-processing techniques. A unique Wavelet Transform gives users a strong confidence level on a wide range of isotopes without being limited to a peak search in a Region of Interest (ROI).

The concurrent background correction and background subtraction, two separate algorithm enhancements, give second-by-second analysis unprecedented confidence. These improvements are particularly useful with high-sensitivity (large volume) NaI and moving applications where background shifts are common.

System Software

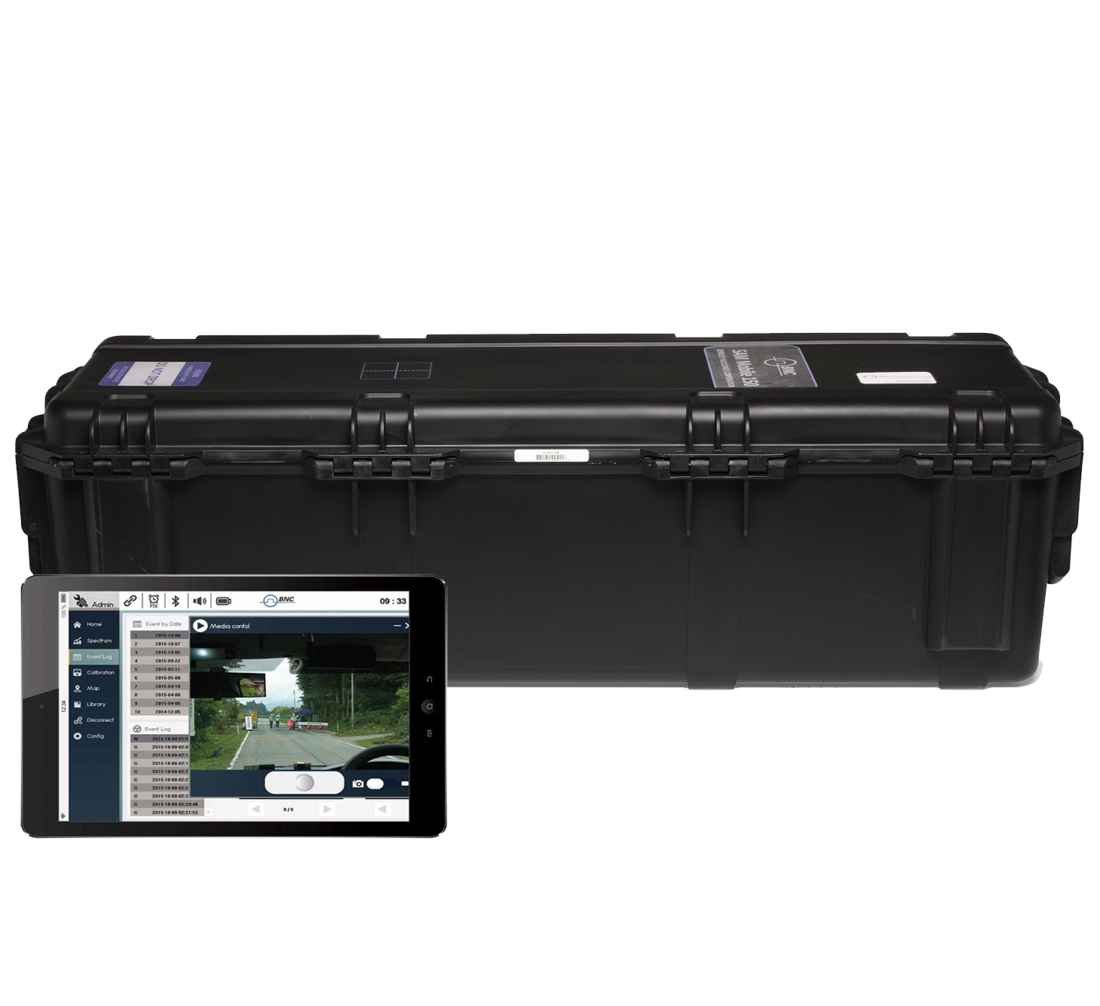

In addition to powerful spectroscopic data analysis and reporting, the Model RD-150 with the included PeakGO app interface gives users features to address the larger situational needs. The full ANSI N42 report can be quickly examined, and then “Pushed” to a management team, reach-back office, or series of several incident support options. Users can easily suspend the data acquisition to take pictures and videos, thereby including situational inputs in the spectroscopic report. Additional software hosted in the user's application gives real-time tutorials on an isotope-by-isotope basis to add credibility to the user's disposition options. This focus on the larger application requirements differentiates PeakGO and BNC’s line of Nuclear Radiation Detection Instruments.

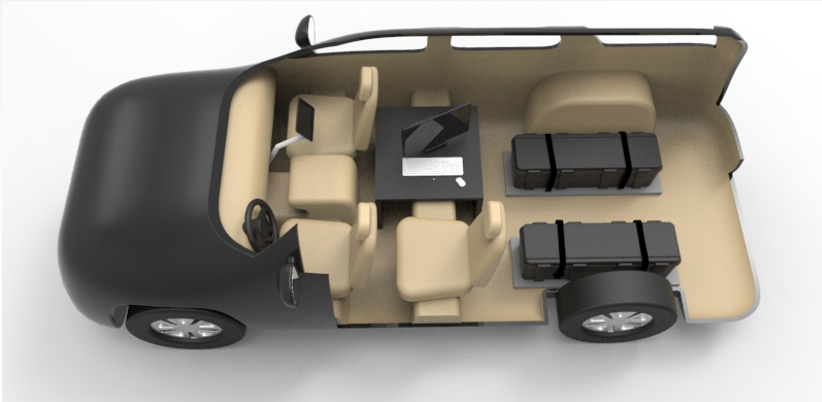

RD-150 Vehicle Placement

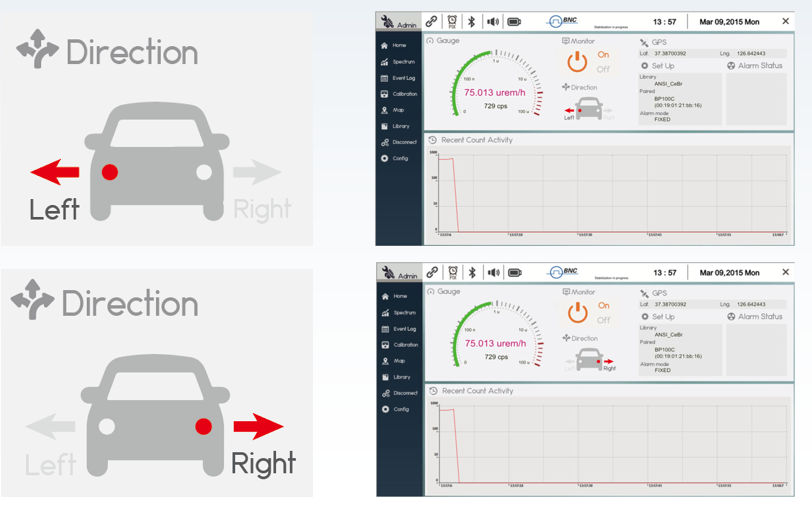

RD-150 Directionality

Specifications

Specifications

Detector Gamma 2x4x16 Nal Up to 3 Units/ Systems
Electronics Digital MCA 32-Bit RISC, ARM Cortex
Conversion 12-Bit (65 Msps)
Data Buffer 54 Kbyte
Energy Range 0.010 - 3.0 MeV
Resolution 7% nom. FWHM @662 keV
Temperature -20degC -50degC
Identification ANSI Isotope List Color Coded
ANSI Isotope Class Color Coded
Multi-Isotope Identification
Real Time Response <1 Sec, first 3 Isotopes
Algorithm Proprietary Wavelet Transform
Background Correction Real Time
Background Subtraction Analysis-Based
Calibration Multi-Peak, Automatic Each Module Individually
Packaging Detector Module 29.7"x19.8"x9.9"
Shock Absorption
Weight 58 lbs/ Detector Module
Vehicle Positioning Self-Contained Enclosure
PeakGO App (Recommended)
ANSI N42 Data Feed Remote Access
Power Battery, Internal Li-Ion >24 hours
Vehicle Powered
GPS Data Report Based Coordinate Tagged Reports
Radiological Mapping Color-Contour Mapping

Shipping Dimensions

46 x 16 x 14"

Shipping Weight

65 lbs

Frequently Asked Questions (FAQ)

Is your isotope identification equipment compatible with RadResponder?

Is your isotope identification equipment compatible with RadResponder?

Our SAM III series of equipment (SAM 950, SAMpack and SAMmobile 150) is compatible with FEMA's RadResponder network at no additional cost to the end user.
