Model 845 | 100 kHz to 26.5 GHzMicrowave and RF Signal Generator

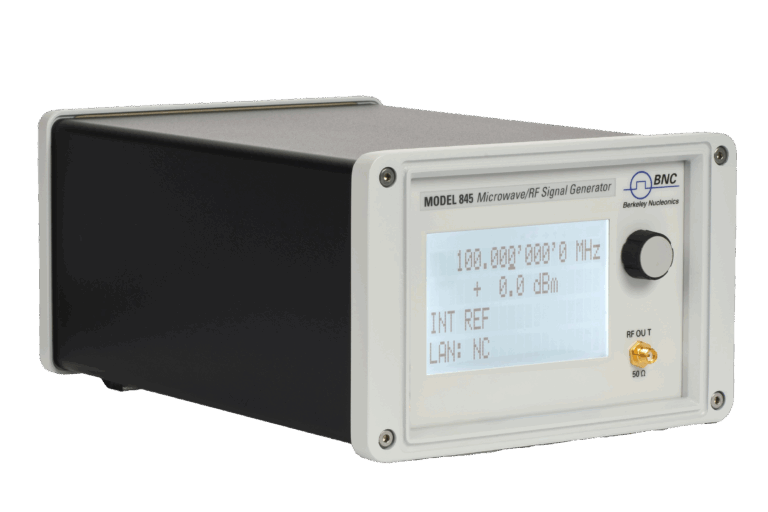

Berkeley Nucleonics' Model 845 RF Microwave Signal Generator is a low-noise and fast-switching microwave signal generator covering from VLF to K-band, 100 kHz up to 26.5 GHz (with the option to extend the frequency down to 9 kHz). The Model 845 Microwave RF Signal Generator offers a wide and accurately-leveled output power range with high spurious suppression. Advanced frequency synthesis with fractional-N divider makes for low SSB phase noise and sub-Hertz frequency resolution.

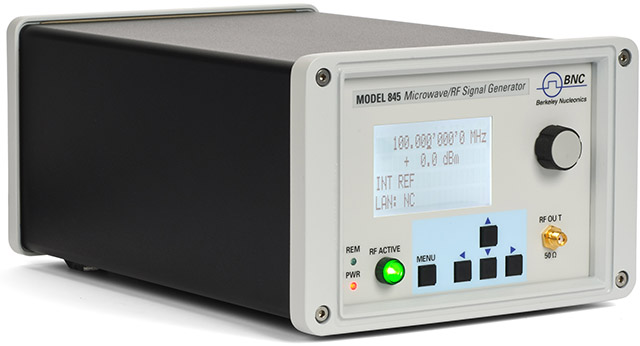

The Model 845 is available in 12, 20, & 26.5 GHz frequencies with a touch screen display. In addition, Model 845 can be customized and configured to each user's specific needs. There are many options to determine your best configuration.  Please see the options list below or contact BNC for support.

Model 845 SIGNAL SOURCE CONFIGURATOR

Frequency Range: 12 GHz
20 GHz
26 GHz
Options: [-HP] High Output Power *[Contact Factory for a power higher than +25dBm]
[-FS] Fast Switching
[-NM] CW Only, No Modulation **[Formerly option LO]
[-9K] Frequency Range Extension Down to 9kHz
[-PE3] Power Extension down to -90dBm (Mechanical Step Attenuator)
[-B3] Internal Rechargeable Battery
[-EB6] External Battery Bank to 6V Adapter
[-NP] Narrow Pulse (30ns minimum PW and 5ns Resolution)
[-FLASH] MicroSD card slot for removable SD memory
[-GPIB] GPIB Communication Port
[-1URM] 19" 1U Rackmount Chassis
[-FILT] Improved Harmonic Filtering
[-REAR] Move Output to Rear (*Requires Rackmount Chassis -1URM)
[-OEM] Board Level Package (see also 845-OEM)
Accessories: 19" 3U Single/Dual Rackmount Kit for Desktop Chassis [P/N 7091]
Spare Power Supply [P/N 7134]
Ruggedized Protective Bumper [P/N 7144]
Model 845-20
100kHz - 20GHz Microwave/RF Signal Generator

Overview

Overview

Applications

Features

  • R&D Low Noise signal source
  • Product Testing
  • Service and maintenance
  • Signal simulation
  • Aerospace & Defense
  • Installation and Maintenance
  • Radar Receiver Testing
  • High Output Power
  • Low Phase Noise
  • Comprehensive AM, low-distortion, wideband DC-FM, and high-speed pulse modulation
  • Powerful Trigger and Sweeping modes
  • Portable battery operation

Specifications
Frequency Range 845-12: 100 kHz to 12 GHz
845-20: 100 kHz to 20 GHz
845-26: 100 kHz to 26.5 GHz
Resolution: 0.001 Hz
Power Range: -20 to +15 dBm (-90 to +25 dBm with option PE3 and HP)
Resolution: 0.01 dB
Switching Speed  400 µs (<30 µs with option FS)
Phase Noise ( 1 GHz CW ) 10 Hz offset: -80 dBc/Hz
1 kHz offset: -117 dBc/Hz
100 kHz offset: -128 dBc/Hz
10 MHz offset: -150 dBc/Hz

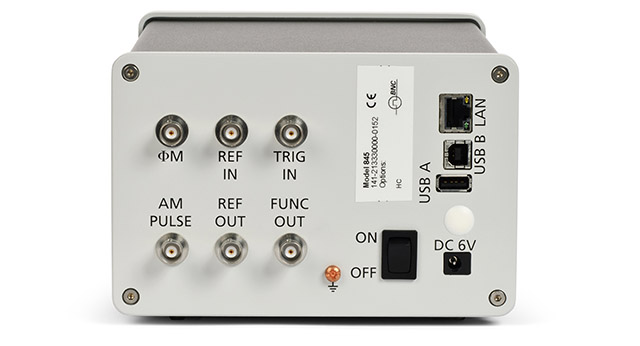

Remote Control  (SCPI v1999)​ Ethernet, USB
GPIB (with option GPIB)
Modulation  AM, FM, PM, Pulse, Chirp
Sweeps  List, Frequency, Power
Reference Input Variable 1 MHz to 250 MHz
Reference Output 10 MHz / 100 MHz
Dimensions (W x L x H)
Weight
6.77" x 10.63" x 4.21" [172 x 270 x 106 mm]
5.5 lbs [2.5 kg]

Shipping Dimensions 18x12x9"
Shipping Weight 10 lbs

Rich Set of Features in the Model 845 Series

The Model 845 Microwave RF Signal Generator also includes AM, DC-coupled, low distortion wideband-FM, PM, FSK and PSK, frequency chirp, and fast pulse modulation with an internal pulse train generator as standard. Three internal modulation sources are available, and all modulation modes can be combined. This allows the generation of complex modulation signals for modern communication and location systems.

The Model 845 is ideally suited for applications where a high-quality CW microwave source with analog modulation is required. The Model 845 operates with an ultra-stable temperature compensated 100 MHz reference (OCXO) and can be phase-locked to any external reference from 1 to 250 MHz. Additionally, the combination of pulse modulation and FM simulates Doppler effects or chirp signals. Simultaneous AM and pulse modulation provide the types of signals occurring in pulse radar applications with a rotating antenna. What's more, the combination of FM and AM can be used to check the fading effects of FM receivers.

The Model 845 operates online or battery power making it useful for field applications or large laboratories. The Model 845 Signal Generator introduces the smallest footprint in its class

Frequently Asked Questions (FAQ)

Model 845 | Why is the front panel so small ?

Model 845 | Why is the front panel so small ?

The Model 845 is a small footprint benchtop Microwave Signal Generator with very high performance. The space saving packaging eliminates most of the front panel controls in favor of a software GUI that can be developed and enhanced over time. The low power requirements are equally resourceful, even allowing for a battery option.

Downloadable Resources

Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.

Product Datasheets
• Product Firmware
• Product Software and Drivers
• Product Manuals

Media

Media
Video URL
Video title

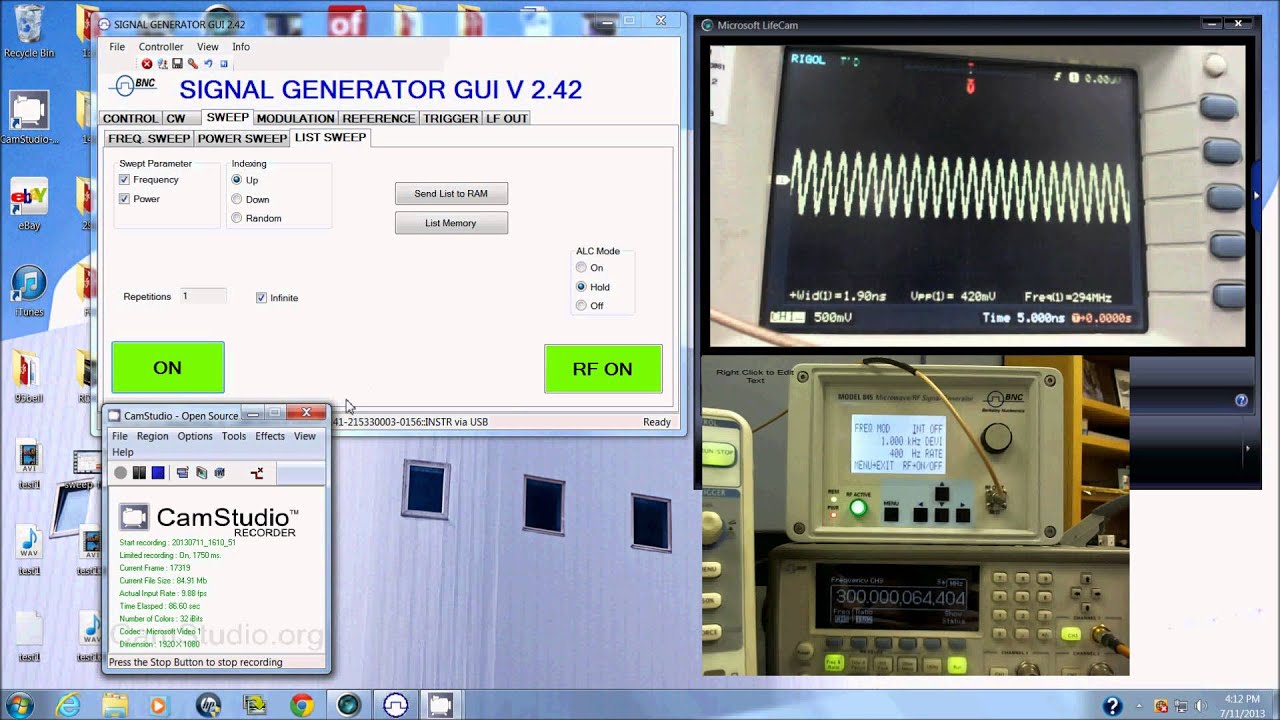

BNC Model 845, 20GHz Microwave Source, List Sweep Functions
