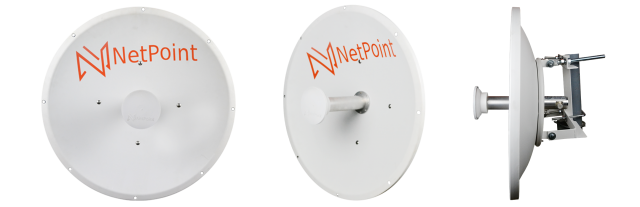

The NP2-GEN2-BNC Standard Series by NetPoint offers a cost effective, dual polarized, 4.9-6.4 Ghz, up to 43.49 miles (70km), 3ft parabolic antenna engineered to deliver reliable radio links with a stable 34 dBi gain from 4.9 to 6.4 Ghz.
Overview
Overview
| FEATURES |
APPLICATIONS |
| Gain of up to 34 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band |
Various Point to Point Communication |
| One antenna that covers 5 and 6 Ghz |
Satellite Communication |
| Reduced interference with 38 dB minimum front to back | Spacecraft Communication |
| Simplifies installation on site and guarantees “factory-tested” quality | Wireless WAN/LAN Links |
| Connector type N Female | Radar Communication |
| Pigtails of N to RPSMA included in the box for free |
Specifications
| Frequency |
4.9 - 6.4 GHz |
| Gain (dBi) |
32.5: 4.9GHz 34.5: 5.4GHz 33.5: 5.7GHz |
| VSWR HPOL | <1.3 |
| Polarization | Dual Slant 45° |

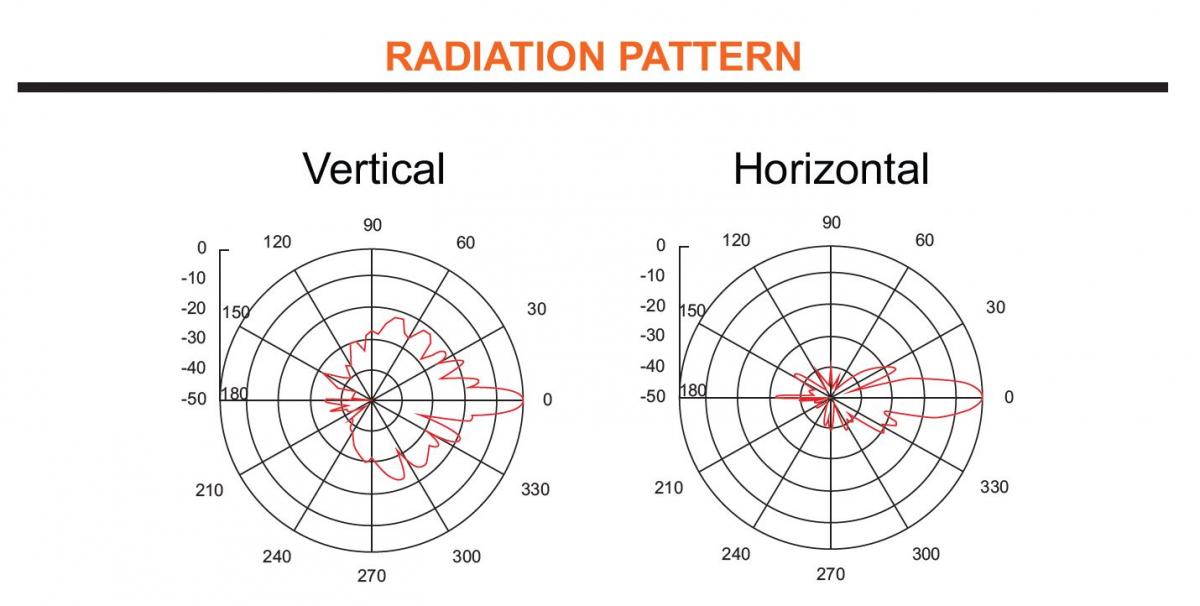

| Beamwidth |
VPOL: 3.84° HPOL: 3.84° |
| Wind max survival speed (MPH) | 124.2 MPH with Radome |
| Azimuth adjustment | +/- 60° |
| Elevation adjustment (°) | +/- 15° |
