Greenfield Technology, BNC Scientific

Greenfield Technology

GFT632 | 32 V Pulse Generator Module

The external triggered module is a pulse generator up to 70 V amplitude. This compact module produces square pulses up to 70 V into 50 Ω with fast 2 ns rise time. The output amplitude is factory adjusted from 15 V to 70 V. The output width is also factory adjusted from 50 ns to 1 μs.

Typical applications include amplifying the output of Greenfield Technology Pulse and Delay Generator (...

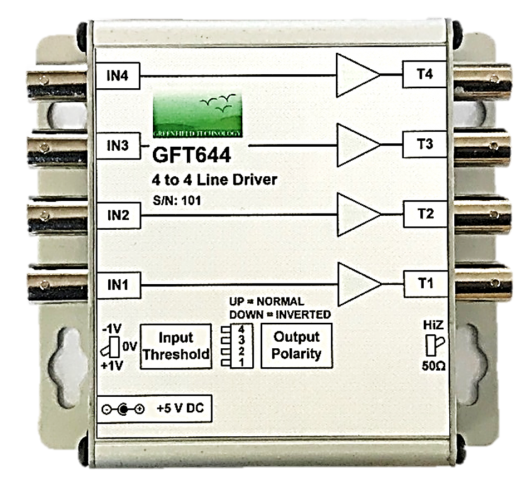

GFT644 | 4 Channel 50 Ω TTL Line Driver Module

The GFT644 module is specially designed for interfacing signal and 50 Ω long cable.

The input threshold can be set to 1.5 or 0.0 or -1.5 V and the input load can be selected from 50 Ω to 1 KΩ pull up by a front panel switch. So that channel input can be driven directly by TTL / CMOS logic levels or open collector or negative pulse ( 0 to -2 V) or AC coupled signal ( +0.5 to -0.5 V)

GFT144 | 4 channel Programmable Delay Module

The GFT144 module is a Four Channel Programmable Delay module designed for component test, data de-skewing and timing adjustment. This compact module is well suited for OEM application with an interface via 2 standard connectors, a small size and only one power source.

The core of the module is made with a component (QFN 56 pins) specially designed by Greenfield Technology.

GFT614 | 1 to 4 Line 50 Ω Driver Module

The GFT614 module is specially designed for distribution of high frequency clock and high-speed logic signal to multiple devices via long cable. All outputs with 50 Ω load can drive 100 feet of cable at clock rate greater than 200 MHz with 2.5 V amplitude.

The channel input threshold can be set to +1 or 0 or -1 V and the input load can be selected from 50 Ω or 1 KΩ...

GFT2005 | 5 Channel Time Interval Meter

The GFT2005 is a very precise Time Interval Meter. It has five channels: Channel 0 is used as the "Start" time reference for channels 1-4 being “Stops” events of the Time Interval measurement. Each channel can measure the time of the rising edge of one electrical input, to 13 picosecond resolution with > 100 second range. Time Interval samples can be automatically...

GFT3001 | Master Oscillator Transmitter

The GFT3001 synchronizes local delay generators over an optical network by generating an optical data serial data stream, as well as through master triggers and a time base. The clock reference of the GFT3001 can be external or internal. In some applications, the GFT3001 can also generate a clock to synchronize other devices (Laser, Oscillator, etc.). The GFT3001 can respond to an external...

GFT2002 | 1 ps Time Interval Counter

The GFT2002 is a very precise time interval analyzer with world leading low jitter. It has three inputs, Start, Stop, and Gate, which are used to measure the time interval.

Data output represents the time interval between one Start and one Stop. Trigger level and slope are adjustable on each input. The module uses a linear interpolation technique and an internal calibration to obtain...

FTD10000 | 7 GHz Transient Digitizer

Greenfield Technology's FTD10000 Ultrafast 7 GHz Fast Transient Digitizer is the industry's fastest digitizer specifically designed to record very fast single shot pulses down to 50ps with 13-bit amplitude resolution. The FTD10000 is the ideal instrument for recording impulse phenomena in laser research, high-energy physics, EMC/EMP simulators and high-voltage breakdowns, as well as testing...

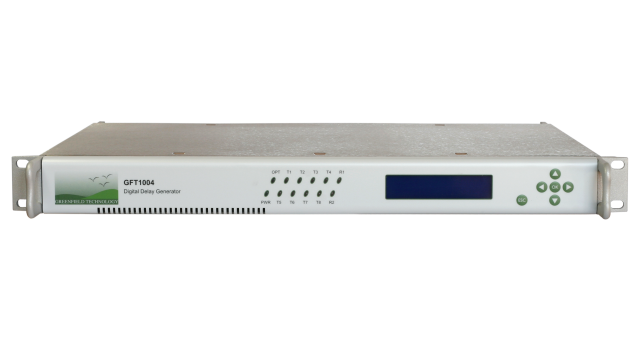

GFT1004 | 4-Channel 1 pS Digital Delay Generator Up to 10 Channels Optional

The GFT1004 is a multi-channel digital delay generator that functions either as a standalone or as a component in a timing system. As a standalone instrument, it will produce multiple channels of delays which can be triggered by an external trigger or by selectable internal triggers. As a component of a timing system, the GFT1004 (with option 1) is operated in conjunction with a GFT3001 master...

Test and Measurement

Radiation Detection
