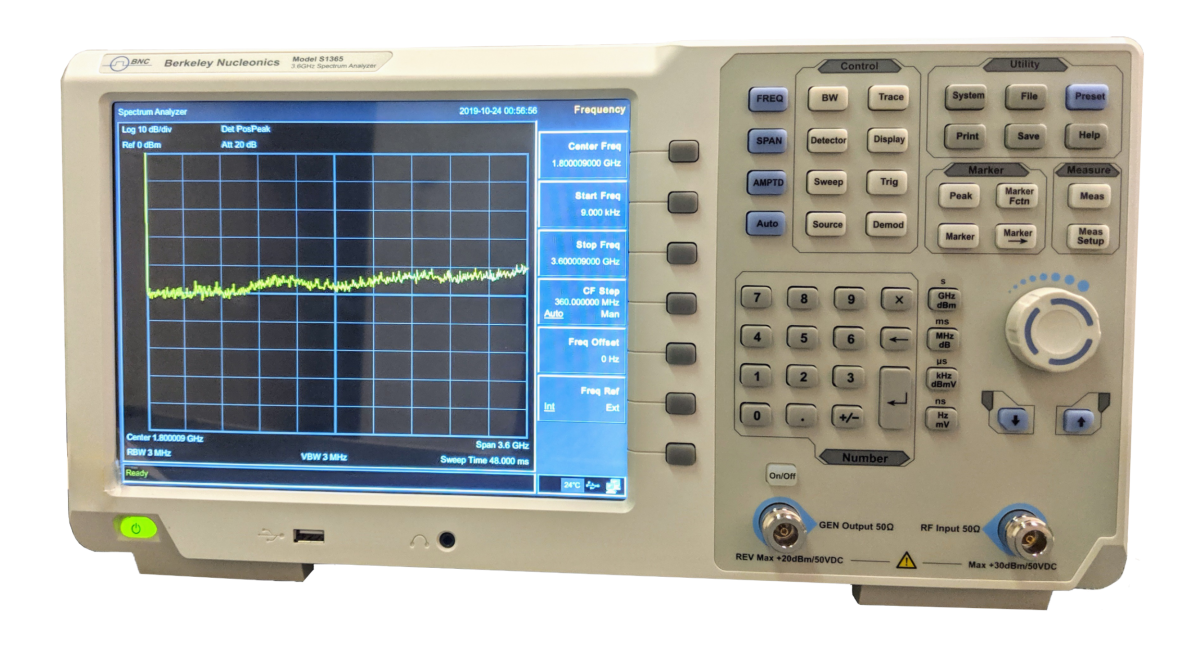

Model S1365 | 3.6 GHz Spectrum Analyzerstarting at $4,225
Features
Specifications
Tech Resources

Downloadable Resources

Price List
FAQ
Contact Us

The Model S1365 is a 9 kHz to 3.6 GHz Spectrum Analyzer with a minimum bandwidth of 10 Hz, allowing excellent signal resolution when separation of closely spaced signals is required. This model also offers a DANL (displayed average noise level) down to -130 dBm, which is able to measure smaller signals.

Overview

Overview

Applications

Features
  • Electronic Circuit Debugging
  • Education and Training
  • Circuit Testing
  • Design and Manufacture
  • Automobile Maintenance and Testing
  • Frequency Range: 9 kHz-3.6 GHz
  • Frequency Resolution: 1 Hz
  • 150 dBm Displayed Average Noise Level
  • Phase Noise: -85 dBc/Hz @1 Gz and offset at 10 kHz
  • Total Amplitude Accuracy < 1.5 dB
  • 10.4-inch display

Specifications
Display 10.4" color TFT LCD，resolution 600 x 480
Frequency Range 9 kHz -3.6 GHz
Frequency Resolution 1 Hz
Resolution Bandwidth (-3 dB) 1 Hz to 500 kHz（in 1-to-10 sequence)， 1 MHz，3 MHz
Reference Frequency 10.000000 MHz
Communication Interface USB Host, USB Device, LAN, earphone port, VGA
Power 100 V - 240 V AC, 50/60 Hz
Dimensions (H x W x D) 340 x 177 x 90 (mm)
Weight 5 kg

Shipping Dimensions 21x14x9"
Shipping Weight 10 lbs
