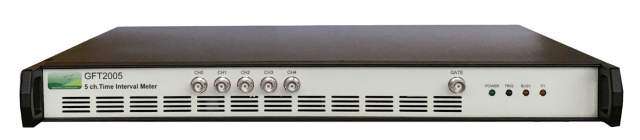

The GFT2005 is a very precise Time Interval Meter. It has five channels: Channel 0 is used as the "Start" time reference for channels 1-4 being “Stops” events of the Time Interval measurement. Each channel can measure the time of the rising edge of one electrical input, to 13 picosecond resolution with > 100 second range. Time Interval samples can be automatically processed to provide Mean, Max, Min and RMS/Jitter.
- Uses an internal 10 MHz oscillator or an external very stable 10 MHz source.
- Offers 4 GPIO (digital bi-directional signals) under software control for communication to external equipment.
- Is a low profile 19", 1U rack instrument with Ethernet interface.
- Has a built in Web server that provide an easy remote control via a standard Web Browser. "Control panel Web page" from embedded web server provide an easy method to:
- Configure settings for each channel and Control operation and status of the instrument.
- View the measurements (value and graphic form).
- Save the measurement in your file computer.
Overview
Overview
Applications
- Time of Flight Mass Spectrometry
- Lab / R&D Characterizations
- Fluorescent Decay
- Real Time, Time Stamping Description
- ATE (Automatic Test Equipment)
- Optical and Magnetic Disk Timing
- Component Test
- Variation in Pulse Timing
Specifications
- Five Channel Time Interval Meter: one Start and four Stops
- 13 Picosecond Resolution
- < 50 Picosecond RMS Jitter
- > 100 Second Range
- 10 MHz Sample Rate Per Channel
- Common Gate Input
- Input for External 10 MHz Reference
- 4 GPIO Signals for Communication to External Equipment
- Quick & Easy Control via “Control Panel Web Page” (only 10 seconds to connect your PC)
- 100 /1000 Mbit/s Ethernet Interface
- Compact 19”, 1U with Optional Mounting Flange
