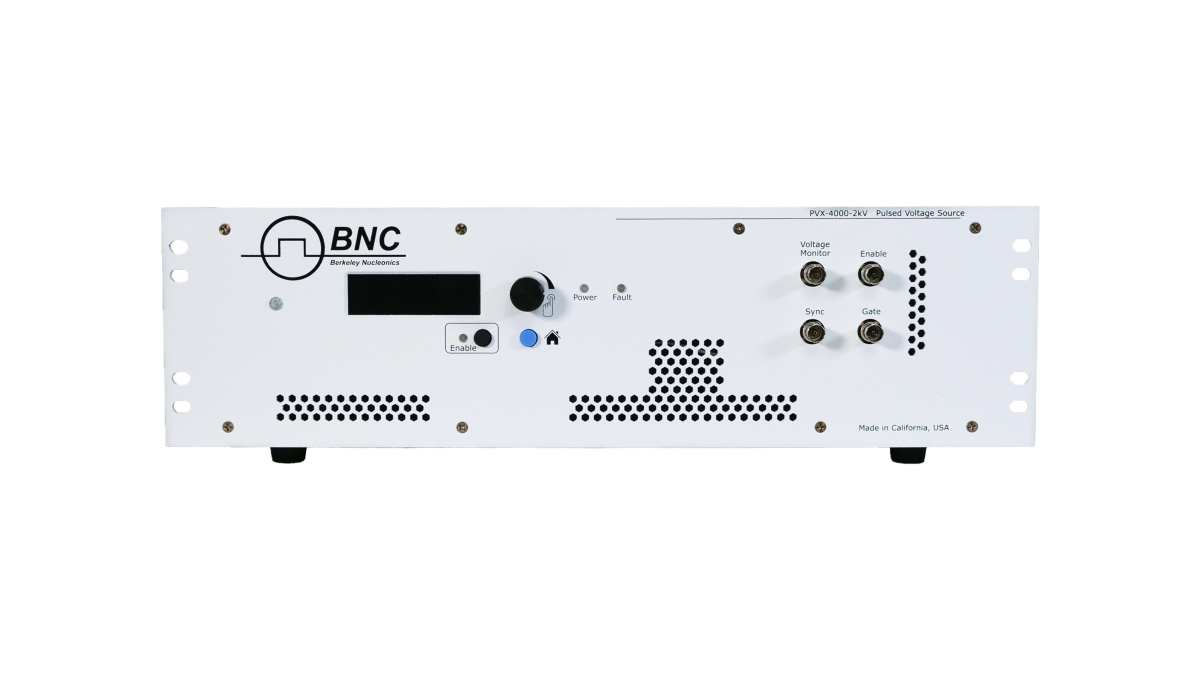

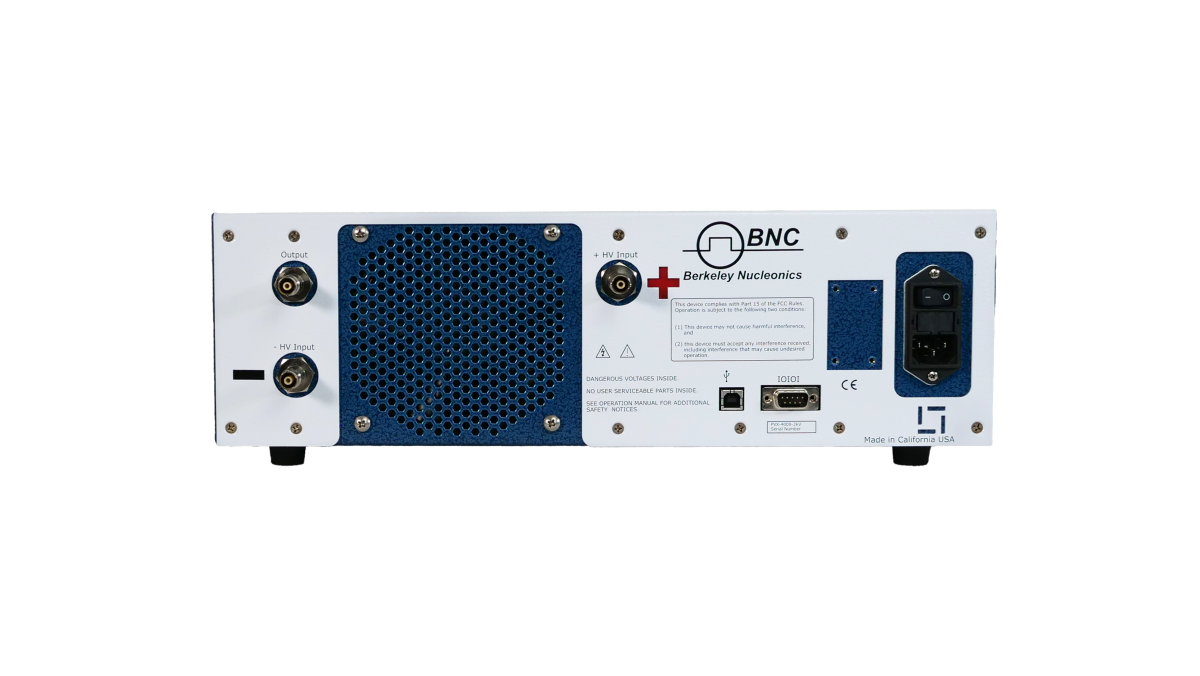

The PVX-4000-2kV is a high voltage pulse generator designed for high impedance capacitive loads and offers the choice between an internal or external power supply option. This unit offers a 0 V to ±2000 V settable output voltage and 2% to 98% duty cycles. With the internal source PVX-4000-2kV, 40 Hz to 30,000 Hz repetition rates are supported. The PVX-4000-2kV is compatible with automated applications through RS-232 and USB computer interfaces, which allow for complete control of the instrument. In addition, the PVX-4000-2kV can be externally triggered, has a Sync output for interconnection to other equipment and can be monitored through the Voltage Monitor BNC connection using an oscilloscope.

*Please contact BNC if you are interested in purchasing the PVX-4000-2kV unit with an internal power supply.

Overview

Overview
Applications Features
  • Driving extraction grids and deflection plates
  • Time-of-flight
  • Pulsing or gating power tube grids, pockels cells and Q switches, acoustic transducers, microchannel plates, photomultiplier tubes, and image intensifiers
  • 0 to ±2000 V Pulse Output
  • <50 ns Rise and Fall Times
  • Pulse Widths from <500 ns to DC
  • Internal Trigger: 40 Hz - 30 kHz pulse repetition frequency
  • External Trigger: single shot to 100 kHz pulse repetition frequency
  • Protected Against Arcs, Shorts and Load Transients
  • Voltage Monitor and Sync Outputs

Specifications
Max Voltage Amplitude ±2000V
Pulse Width 2% to 98% Duty Cycle
Frequency Range

PVX-4000-2kV: single-shot to 30 kHz

PVX-4000-2kV-EX: single-shot to 100 kHz

Rise/Fall Time ≤ 50 ns from 500 V to 2000 V
≤ 100 ns from 200 V to 500 V
≤ 50 ns from -500 V to -2000 V
≤ 100 ns from -200 V to -500 V
Pulse Engine (Trigger) External, Internal
Pulse Polarity Bipolar (+/-)
Remote Control RS232, USB
Form Factor Benchtop, Rackmount
Power Supply Internal or External Options
