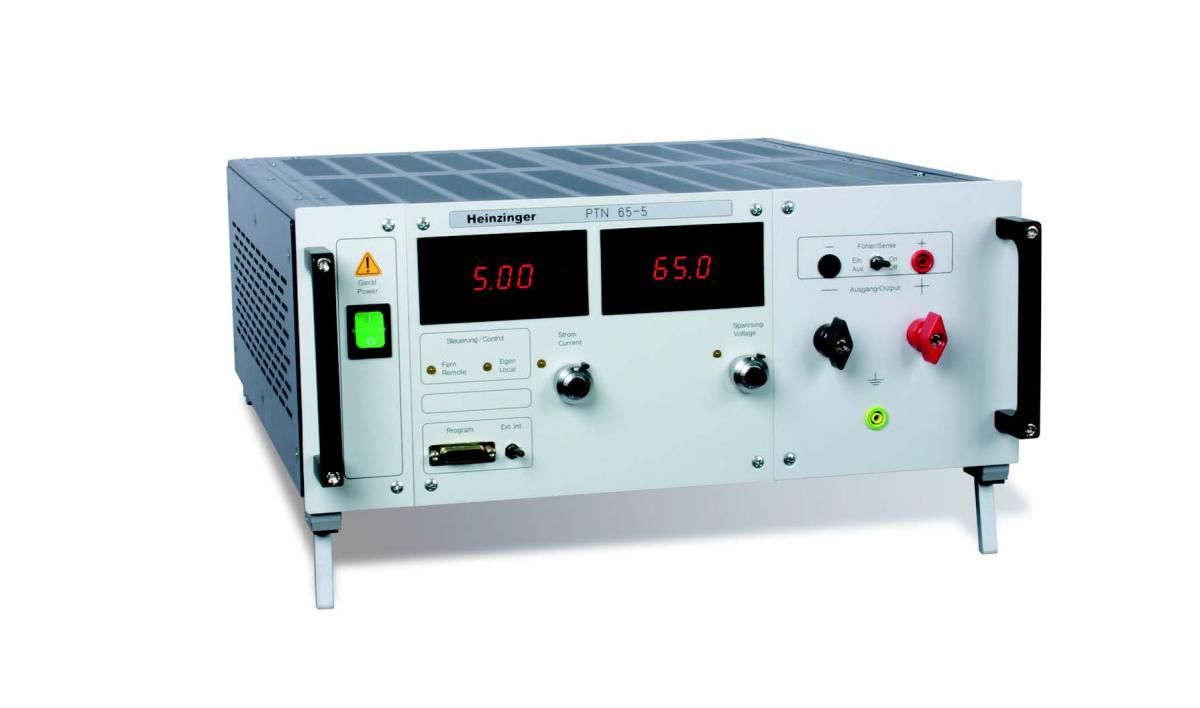

PTN High Current Power SupplyOutput currents up to 200 A

Precision high current power supplies from the BNC–Heinzinger PTN series meet the most demanding standards. Each unit is double-standardized, linear-regulated and supply a controlled DC voltage with very low ripple.

The PTN series are available in various current ratings up to a voltage class of 600 volts with power up to 5,200 Watts and meet the most demanding standards (high voltages, and power on request). Get standard currents up to 200 A (>5,000 A available with PTN3p) with an accuracy of <0.01%.

Excellent long-term stability and reproducibility makes the PTN series especially optimized for demanding industries and research institutes that need equipment that will last for long periods of time.

To help meet complex requirements, the PTN series comes with a wide range of standard options that enable the unit to be tailored to specific applications. The PTN is an ideal choice for a plethora of applications in the high current range because of its ability to be adapted to specific requirements in real time.

Overview

Overview

Features

Applications

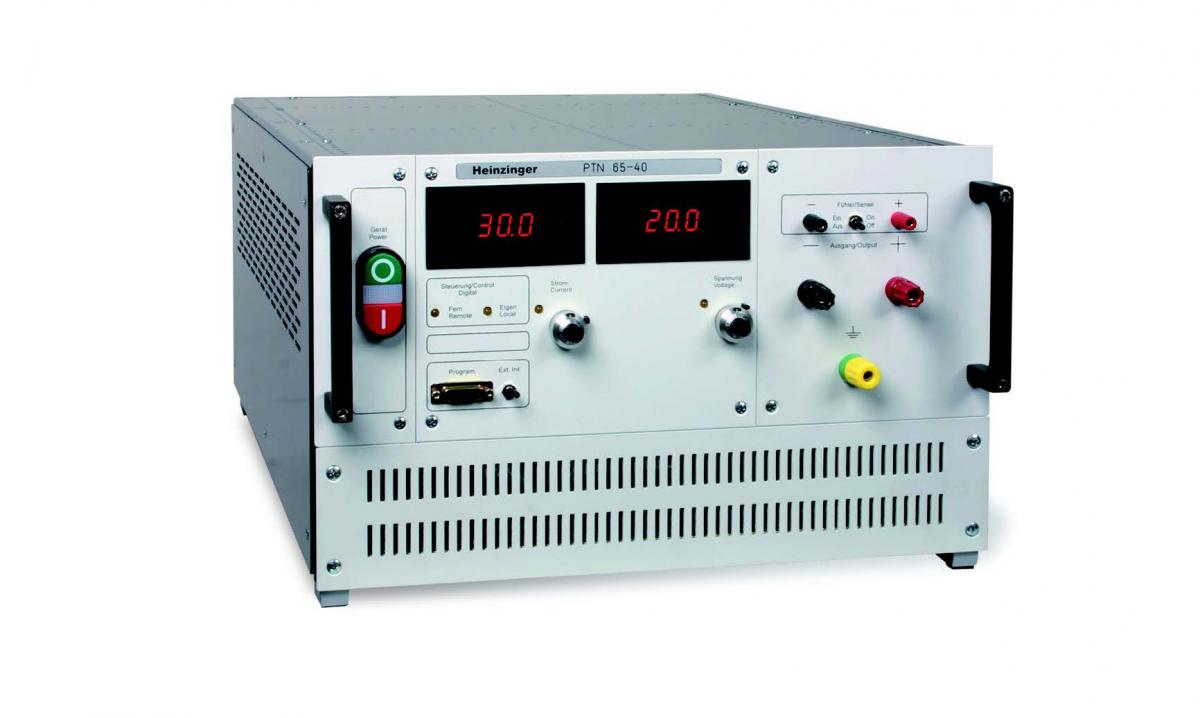

  • Low ripple and high stability through linear transistor control loop (PTNhp versions down to 0.001%)
  • Output voltage up to 600 V
  • Output current up to 200 A
  • Ultra-fast recovery times
  • Sense input line for voltage control at the load face 0...10 V
  • Continuous short circuit proof
  • Benchtop or 19" rack mount
  • Semiconductor tests
  • Magnet supply
  • Fuse tests
  • Equipment tests
  • Lamp supply

Specifications
Input Voltage

1-phase units: 230 V ±10%
2-phase units: 400 V ±10%

PTNhp: 3-phase units: 400 V ±10%
other on request

Input Frequency 47 ... 63 Hz
Input Current type-dependent
Output voltage isolated, floating w.r. to ground (≤1,000 V DC) connected to output „+“
Voltage Stabilization

Line regulation

(at ±10% mains voltage change due to load change)

<±0.001 % Unom

Load regulation

(on load step from 10% to 90%)

PTN: ≤±0.01 % Unom ±200 μV

PTNhp: ≤±0.001 % Unom ±200 μV

Stability

(under constant conditions)

PTN: ≤0.01 % Unom over 8 h

PTNhp: ≤0.001 % Unom over 8 h

Current Stabilization

Line regulation

(at ±10% mains voltage change due to load change)

<±0.003 % Inom ±200 μA

Load regulation

(on output voltage change of around ±10% due to load change)

PTN: <0.01 % Inom ±100 μA

PTNhp: <±0.005 % Inom ±100 μA

Stability

(under constant conditions)

PTN: ≤0.02 % Inom over 8 h

PTNhp: ≤0.002 % Inom over 8 h
