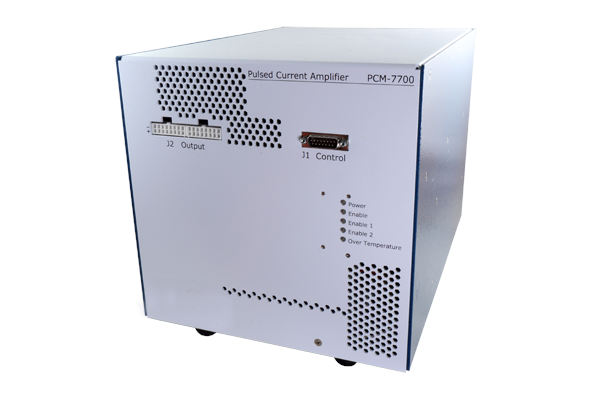

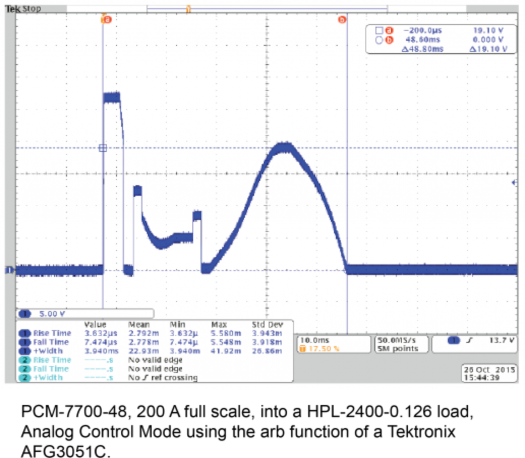

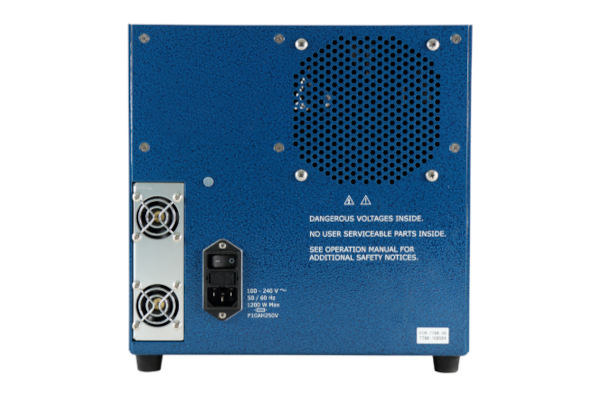

The PCM-7700 is a high-power current amplifier with an output that can be set from 5 A to 200 A. It is intended to drive laser diodes, bars, and arrays but can be used for any application that requires high current arbitrary waveforms. The PCM-7700-48 has an internal high-current power supply, whereas the PCM-7700-EX is powered from an external supply. Both models can support load voltage of 0 V to 25 V. In digital control mode, the pulse width can be set from 500 μs to 50 ms with a pulse repetition rate of single-shot to 1 kHz. In analog control mode, it is not limited by width and can amplify arbitrary waveforms.

Included with the unit is an evaluation board with all the necessary controls for the user to begin testing immediately. The output current can be set with the potentiometer on the evaluation board or with an analog voltage. Both analog and digital control modes are supported.

Overview

Overview
Features Applications
  • Output Current up to 200A
  • Output Voltage up to 25V
  • 200µs to 50ms Variable Pulse Width
  • Output Power up to 1,250W
  • Digital and analog control modes
  • DB-15 remote interfaces for automated operation
The PCM-7700 is designed to drive laser diodes, bars and arrays with forward voltages up to 30V (35V or the PCM-7700-EX model)

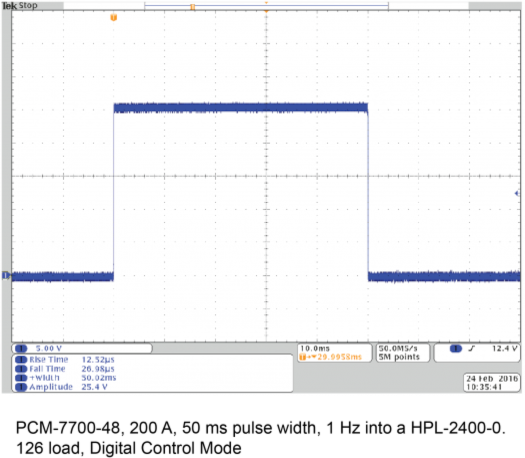

Specifications
Compliance Voltage 25V
Max Current Amplitude 200A
Rise/Fall Time 75μs
Max Frequency 1kHz
Pulse Engine (Trigger) External
Remote Control N/A
Form Factor Module
Cooling Forced Air
Polarity Positive
Pulse Width 500μs to 50ms

Accessories

AC Power Cord

Factory-supplied power cord, type IEC 320-C-13 grounding equipment power cord.

Twisted-Pair Output Cables

The factory-supplied output cables transfer output current pulses to an external device. Two twisted-pair cables fit the socket on the front panel of the PCM-7700; an Amp 770583-1 connector is supplied on the user end.

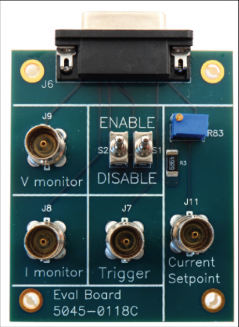

Evaluation Board

The evaluation board provides convenient connections to all of the available signals, allowing the user to utilize the system upon receipt. This includes such functions such as monitoring the output current and voltage, using a trigger source to set the frequency and pulse width, and connecting an analog signal that sets the current output.

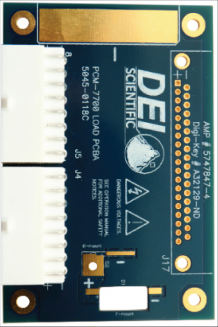

Output Interface Board

The output interface board has connectors for the twisted-pair output cables. The customer can put a load on this interface board.
