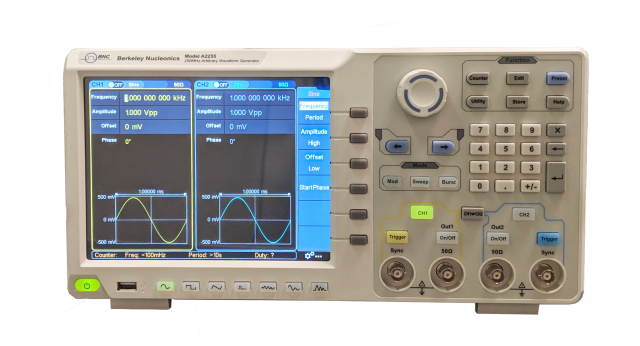

The Model A2255 is a 2-channel, 250 MHz Arbitrary Waveform Generator used for general purpose R&D and benchtop testing.

Overview

Overview

Applications

Features
  • Electronic Circuit Debugging
  • Education and Training
  • Circuit Testing
  • Design and Manufacture
  • Automobile Maintenance and Testing
  • Max 1.25 GS/s Sample Rate
  • Vertical Resolution: 14 bits, max 1M Arb Waveform Length
  • 1 μHz Frequency Resolution
  •  8-inch (800 × 600 pixels) Multi-Touch Screen
  • High-Accuracy Frequency Counter, Supported Range  100 mHz - 200 MHz

Specifications
Display 8” 800 x 600 pixels touch screen LCD
Frequency Output 250 MHz
Channels 2
Sample rate 1.25 GS/s​
Vertical Resolution​ 14 bits​
Rise / Fall Time​ < 5 ns
Standard Waveform​ sine, square, pulse, ramp, noise, and harmonic​
Accuracy​ ±1 ppm, 0°C - 40°C
Communication Interface​ USB Host, USB Device, and LAN​
Power source Rechargeable lithium-ion battery or AC adapter for 100 to 240 V, 50/60 Hz
Dimensions (H x W x D) 13.4 x 7.0 x  3.5 in (340 x 177 x 90 mm)
Weight 5.51 lbs (2.50 kg​)

Shipping Dimensions 18x12x9"
Shipping Weight 11 lbs
