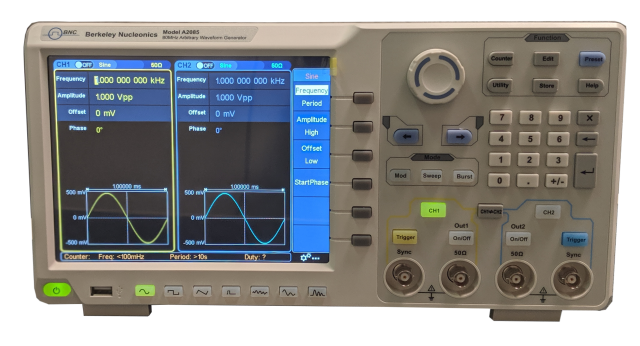

Model A2085 2 Channel 80 MHz Arbitrary Waveform Generator
Quote
Contact
RF Selection Guide

Model A2085 | 2 Channel 80 MHz Arbitrary Waveform Generator starting at $1,290
Features
Specifications
Tech Resources

Downloadable Resources

Price List
Quote
Contact Us

The Model A2085 is a 2-channel, 80 MHz Arbitrary Waveform Generator for general purpose benchtop use.

Overview

Overview

Applications

Features
  • Electronic Circuit Debugging
  • Education and Training
  • Circuit Testing
  • Design and Manufacture
  • Automobile Maintenance and Testing
  • Max 1.25 GS/s Sample Rate
  • Vertical Resolution: 14 bits, max 1M Arb Waveform Length
  • 1 μHz Frequency Resolution
  • 8-inch (800 × 600 pixels) Multi-Touch Screen
  • High-Accuracy Frequency Counter Integrated
  • Counter Supported Range 100 mHz - 80 MHz

Specifications
Display 8” 800 x 600 pixels touch screen LCD
Frequency Output 80 MHz
Channels 2
Sample rate 1.25 GS/s​
Vertical Resolution​ 14 bits​
Rise / Fall Time​ < 5 ns
Standard Waveform​ sine, square, pulse, ramp, noise, and harmonic​
Accuracy​ ±1 ppm, 0°C - 40°C
Communication Interface​ USB Host, USB Device, and LAN​
Power source AC adapter for 100 to 240 V, 50/60 Hz
or Rechargeable lithium-ion battery (Optional)
Dimensions (H x W x D) 13.9 x 7.0 x 3.50 in (340 x 177 x 90 mm)
Weight 5.50 lbs (2.50 kg​)
Technical resources
PDF icon Model A2085 Datasheet
Downloadable Resources

Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.

• Product Datasheets
• Product Firmware
• Product Software and Drivers
• Product Manuals

Price List

Price lists are available to our registered users. To view pricing for this and other products, please log in or create a free account.
