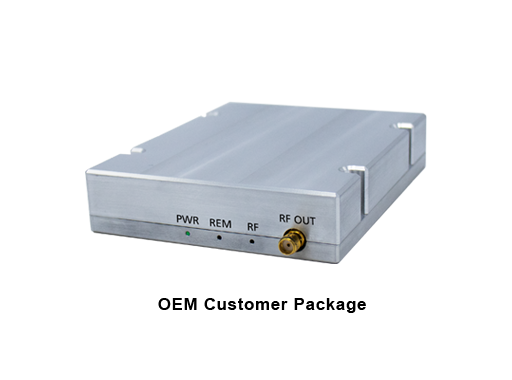

Berkeley Nucleonic's Model 805-M is a compact and low-cost RF signal generator that delivers precise and stable frequencies from 100 kHz to 22 GHz.

The Model 805-M brings a powerful set of new features and upgrades. One of it's standout features is the ability to link multiple units for phase coherence and multi-channel capabilities in various applications. The Model 805-M is user-friendly and its compact design makes it suitable for integration into various forms and layouts of RF/microwave systems. This signal generator serves as a highly favorable substitute for the National instrument's QuickSyn frequency synthesizers.

The Model 805-M frequency synthesizer has multiple applications. It serves as a suitable clock for RF/microwave systems, especially when multi-channel and phase-coherent local oscillators are required. Its ability to adjust individual channel phase provides precise timing alignment. Its phase-coherent, multi-channel configuration is ideal for designing and testing of radar receivers, phased array beamforming networks, I/Q modulators in quantum computing instrumentation, MIMO receivers, and heterodyne spectroscopic systems. Its phase-coherence and fast switching capabilities also support fast frequency hopping in agile electronic warfare systems. Optimal Substitute for National Instruments (NI) Models FSW-0020, FSW-0010, FSL-0010 and FSL-0020.

Overview

Overview

Applications

Features

  • System clock source
  • Multi-channel phase-coherent configurations for radar signal generation and testing
  • Beamforming, MIMO receiver R&D
  • Quantum computing: as RFLO for IQ mixers
    and parametric amplifier pumping
  • Electronic Warfare
  • Spectroscopy
  • Small size flange-mount module
  • CW and pulse modulation
  • Low power consumption as low as 17 W, passive cooling
  • Multi-channel configurable / cascadable: Master-slave connection through 1 GHz reference loop-though
  • Phase coherent

Specifications
Frequency

100 kHz to 22 GHz

Resolution: 0.01 Hz

Output Power Range -40 to +25 dBm (less than 20 GHz)
Switching Speed  500µs (20µs with option FS)
SSB Phase Noise at 1 GHz  10 Hz: -87 dBc/Hz​
1 kHz: -122 dBc/Hz
20 kHz: -132 dBc/Hz
10 MHz: -150 dBc/Hz
Remote Programming Interfaces

Ethernet Interface

Control language: SCPI Version 1999.0

Modulation Pulse
Sweeps Linear, logarithmic, random
Dimensions (W x L x H)  5.3" x 3.7" x 1.0" (134 x 95 x 24 mm.54)
Weight 1 lb (0.45 kg)
