Our most capable current generator provides users with the ability to generate highly precise current pulses, making this unit ideal for applications that require a high level of accuracy and repeatability. Advanced safety features provide user assurance.

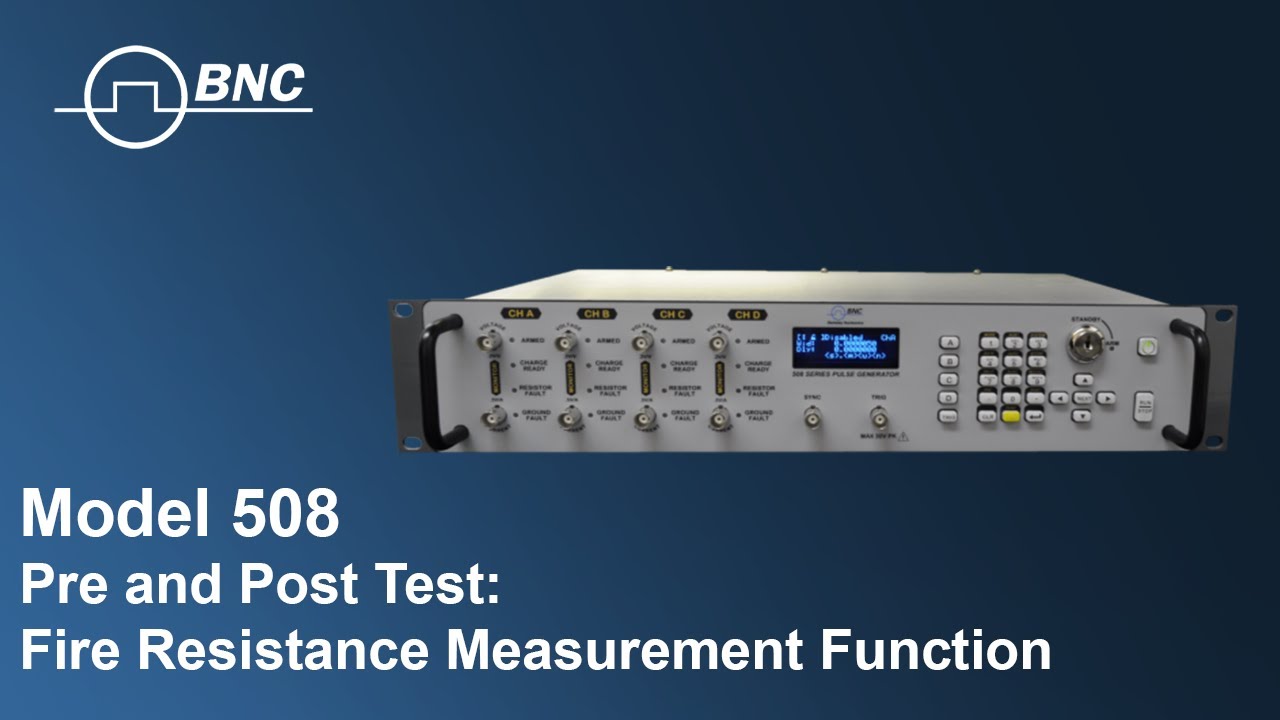

The Model 508 is designed for airbag and pyrotechnic initiator testing and represents the latest in current pulse generating capabilities with compelling features that provide users with time-saving characteristics of adjustability, simple operation, and programmability.
The 508 comes in a 19” 2U form factor as a 2 or 4 channel model with current sensing and resistance measurement capabilities. This unit is ideal for applications that require a high level of accuracy and repeatability.
The 508 also comes with advanced safety and testing capabilities that include remote interlock, pre/post measurements, and keyed enable switch so the unit fires only when all safety criteria are met. High functionality, safety, and a rapid return-on-investment are the hallmarks of this new fireset for pyrotechnic initiators. The Model 508 provides multiple firing channels: all-fire, no-fire, resistance measurement, DC current, capacitor discharge, Bruceton, Neyer, and high current.
The performance and advanced features of the 508 current pulse generator make it ideal for applications such as air bag deployment testing (squib detonation) or igniter deployment that can be done reliably, safely and with repeatability.
Applications such as air bag deployment testing (squib detonation), igniter triggering, or ballistics work can be done reliably, safely and with a high level of repeatability.
Overview
Features |
Applications |
|
|
- 200 ns Timing Steps
- 6 amps per Channel
- 2 or 4 Channel Outputs
- Benchtop or Rack Mount Design
- Easy Programming Interface
- TTL Sync output to T0
- Integrated 4-wire Resistance Measurement with Pre and Post-Testing features. (per channel)
* Ability to set the mean and upper/ lower limits to determine what construes a resistance fault - Current and Voltage Monitor Outputs.
- Front and Rear Sync Outputs.
- Safety features including Remote Interlock and Removable keyed enable switch.
- RS232, USB, and optional Ethernet port for remote computer programming
I/O CONFIGURATION
Output Modules | 2 Output Channels 4 Output Channels |
Trigger Inputs | Front and Rear Trigger |
INTERNAL RATE GENERATOR
Rate | 0.01Hz to 100 kHz |
Resolution | 100 ns |
Accuracy | 20 ns |
Jitter | 10 ns RMS |
Output Modes | Single Pulse, Burst |
Burst Mode | 1 to 250 pulses |
Control Modes | Internal Rate Generator, External Trigger |
EXTERNAL TRIGGER INPUTS
Function | Generate individual current pulses (single shot or burst) |
Front or Rear | Selectable between front or rear panel inputs |
Rate | DC to 1/(330ns+Longest active pulse) |
Insertion Delay | 330 ns |
Jitter | 10ns |
Impedance | 1kΩ |
Slope | Rising or Falling |
Trigger Filter | Filters out unwanted "glitch" or "runt" pulses |
Pulse Width | 0.02 us to 1 ms |
Pulse Width Resolution | 0.02 us |
Trigger Level | 2-15V |
Trigger Threshold Resolution | 100mV |
OUTPUTS
Amplitude | 0.10 - 6A |
Resolution | 1mA |
Accuracy | 2mA Typical |
Compliance Voltage Level | 20V |
Slew Rates | |
---|---|
Rising Edge - Inductive (Varies with Load) |
2A/ us @ 6A 1A/ us @ 3A 0.30A/ us @1A (1 Ω and 50' cable) |
Falling Edge - Inductive (Varies with Load) |
-1.60A/ us @6A -0.90A/ us @3A -0.30A/ us @1A (1 ohm and 50' cable) |
Rising Edge - Resistive Varies with Load) |
6.3A/ us @6A 9.5A/ us @3A 2.2A/ us @1A (1 ohm & 2" cable) |
Falling Edge - Resistive (Varies with Load) |
-5.2A/ us @6A -4.0A/ us @3A -1.3A/ us @1A (1 ohm & 2" cable) |
RISE TIME
Rising Edge - Inductive Varies with Load) |
4us (1 Ω, 50' cable, 6A) |
Rising Edge - Resisitve (Varies with Load) |
550ns (1 Ω, 2" cable, 6A) |
Pulse Width Range |
5us - 100s* (Maximum pulse width is limited by current amplitude. 1A can go up to 100 s and 6 A is limited to 300 ms. |
Error | ± 0.1% |
Resolution | 100 ns |
Delay Range | 0 to 1 secs |
Error | ± 0.1% |
Resolution | 100ns |
MONITOR OUTPUTS
Voltage Monitor (Isolated) | 1V/ V |
Current Monitor | 1V/A |
Error | < 4% |
Bandwidth | 150kHz |
RESISTANCE MEASUREMENT
Range | 0.1 to 150 Ω |
Resolution | .01 Ω |
Error .5 to 15 Ω | < 4% |
Error 16 to 150 Ω | < 10 % |
Measurement Current | 100mA (max) |
SYNC OUTPUTS
Front and Rear | T0, Channels A through D |
SAFETY
Remote Interlock | Interlock |
Arming Key Switch | Removable key switch |
COMMUNICATION
RS232 | 115200, 57600, 38400, 19200, 9600, 4800 baud |
USB | Serial Bridge |
Ethernet | Option |
Size
Size |
---|
19" 2Ux10" Rack Mount |
Electrical
Electrical |
---|
100/240V, 50-60Hz |
