GFT 9404

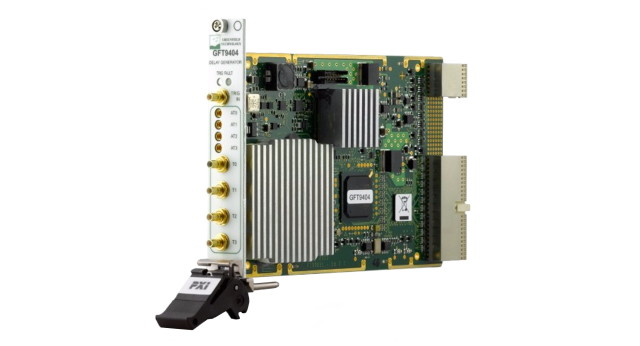

GFT9404 8-Channel Digital Delay Generator

The GFT9404 module provides precision digital delay generation on the PXI platform.

Overview

Overview

The GFT9404 module provides precision digital delay generation on the PXI platform. It offers four independent precision delay channels capable of 1 ps delay resolution and four auxiliary delay channels with a 5 ns delay resolution. Each delay output is configurable in terms of amplitude and width definition. The GFT9404 features driver support for Windows OS as well as an NI-VISA-based LabVIEW instrument driver.

Specifications
  • 4 independent precision delay outputs, 4 independent coarse delay outputs
  • 1 ps precision delay output resolution, 5 ns coarse delay output resolution
  • Configurable delay amplitude and pulse-width definition
  • PXI STAR, onboard clock, external TRIG IN trigger support
  • NI-VISA-based LabVIEW driver, Windows driver support
Downloadable Resources

Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.

Product Datasheets
• Product Firmware
• Product Software and Drivers
• Product Manuals
