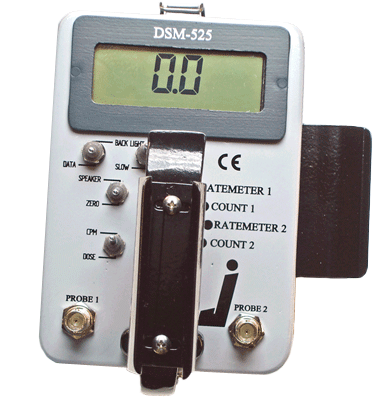

The DSM-525 is the most functional survey instrument on the market with its dual probe capability. This dual connection capability allows users the luxury of multiple level measurements with as many as four different probes calibrated to each measurement type. No more retracking to the instrument case to switch probes.
Specifications
| Input Sensitivity | 0.05V |
| Dose/CPM Switchable | External Dose / CPM Switch |
| Display-LCD | CPM, KCPM, CPS, uR/hr,mR/hr,R/hr,uSv/hr,mSv/hr,Sv/hr |
| LCD Refresh Rate | 0.8 - 3.0 Sec adjustable |
| Display Backlight | push button, 30 Second auto off |
| Scaler Count Time Ranges | 10-2550 Seconds (10 second increments) |
| Probe 1 Ranges | 0-999.9 R/hr 0-999.9 Kcpm |
| Probe 2 Ranges | 0-999.9 R/hr 0-999.9 Kcpm |
| Scaler Ranges | 0-9,999 Kcpm |
| Alarms | 5-95% of full scale for Dose & CPM |
| Diagnostics | Low Battery, Overrange - Audible and Visual Alarms |
| Over Range Alarm | Adjustable 10% above max range - dose calibration only |
| Electrical Non-Linearity | < 5% |
| Response Time | Fast - 10-2550 Seconds (adjustable) | Slow 10-250 seconds (adjustable) |
| Drift | <5% |
| Environmental | -20° F[-28° C]-140° F[60° C] | 5-95% RH IPX4 Housing |
| #1 High Voltage | Adjustable 300-1500 VDC|Regulation +-1% |
| #2 High Voltage | Adjustable 300-1500 VDC|Regulation +-1% |
| Audio (click per event) | On--Off switch on front panel |
| Battery | 6 "AA" Alkaline-400 hours nominal |
| Circuitry | Digital Microprocessor Controlled |
| Dimensions | 5.25" (14cm) H x 4" (10cm) W x 7" (18cm) L |
| Weight | 2.5 lbs. (1.2 Kilos) w/Batteries |
| Probes | Internal Energy Compensated GM 1mR/hr - 50R/hr |
| Data Output (optional) | 9 Pin Serial RS-232 - Panel switch manual data extraction (optional) |
