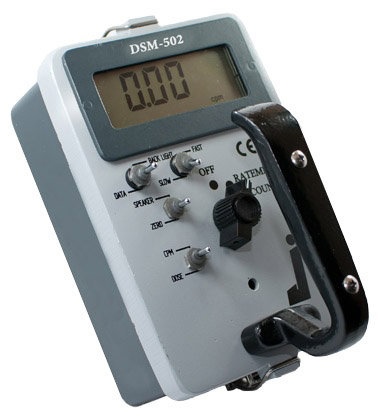

The DSM-502 Survey Meter is designed as the perfect instrument for general users of radiation measurement and monitoring. It's mid-range internal detector allows for the perfect combination of accuracy, simplicity and functionality for the reliable and consistent measurement of dose.
Overview
Overview
| Input Sensitivity | 0.05V |
| Display-LCD | 4-Digit x .75" LCD w/LED Backlight |
| LCD Refresh Rate | 0.8 - 3.0 Sec in 0.2 Sec increments - adjustable |
| Display Backlight | Push button, 30 Second auto off |
| Dose Ranges | .01-2,000 mR/hr |
| CPM Ranges | 0-999.9 Kcpm |
| Probe Linearization | Internal adjust for cal constant and dead time |
| Scaler Ranges | 0-999.9 Kcpm |
| Scaler Count Time Ranges | 10-2550 Seconds (10 second increments) |
| Alarms | 5-95% of Range |
| Diagnostics | Low Battery, Overrange - audible and visual |
| Range Adjustment | Auto-Ranging All Scales |
| Electrical Non-Linearity | < 5% |
| Response Time | Fast - 10-2550 Seconds (adjustable) | Slow 10-250 seconds (adjustable) |
| Drift | <5% |
| Environmental | -20° F[-28° C]-140° F[60° C] | 5-95% RH IPX4 Housing |
| High Voltage | Adjustable 300-1500 VDC|Regulation +-1% |
| Battery | 6 "AA" Alkaline-400 hours nominal |
| Circuitry | Digital Microprocessor Controlled |
| Dimensions | 5.25" (14cm) H x 4.0" (10cm) W x 7.0" (18cm) L |
| Weight | 2.5 lbs. (1.2 Kilos) |
| Construction | Heavy Duty Cast Aluminum and Stainless Steel |
| Probes | Internal Energy Compensated GM |
| Data Output (optional) | 9 Pin Serial RS-232 - Panel switch manual data extraction |
| Shipping Dimensions | 18 x 12 x 9" |
| Shipping Weight | 5 lbs |
