August 1st, 2018 - New Product - Model 525 6-Channel Nanosecond Pulse / Delay Generator

Berkeley Nucleonics unveils its newest addition to a growing family of USB-Driven instrumentation. The new 6-channel Model 525 is a nanosecond Pulse / Delay Generator in a compact form factor, at an affordable price. In celebration of 55 years in business, the company is offering introductory pricing of $1963 / unit in small quantities

Berkeley Nucleonics Corporation (San Rafael, CA) has launched the latest design in a growing family of USB-Driven instrumentation. The new multi-channel pulse/delay generator offers 6 channels of delay and width control in a compact design. The new DDG introduces a host of updated operating modes, output features and mechanical versatility. Intuitive front and rear panel controls allow start and stop, active indicators and trigger options. This enables users to orient outputs on either the front (benchtop) or rear of the unit (rackmount).

The Model 525 Pulse / Delay Generator addresses a growing need for space saving designs, less mechanical components and cost reduction. The instrument is powered by USB and measures just 2.5”x6.5”x7.0” with Gate/Trigger and Output Connectors. As a growing number of timing and gating applications demand PC-controlled devices, the Model 525 introduces 6 timing channels at an affordable price.

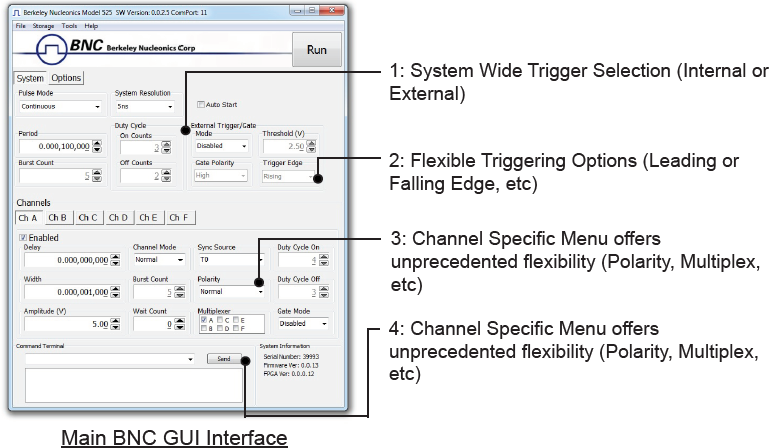

Berkeley Nucleonics provides a simple software GUI to control the delay generator from any PC. Front the software GUI, parameters like delay from trigger, pulse width, when to trigger, or how many pulses to burst can be quickly set up.  Using the new Clock-Divider, you can adjust pulse rates for each channel even when using a common trigger. (Ch1, 20 MHz; Ch2, 5 MHz, Ch3, 50Hz...etc). Another new option allows external triggering of selected channels.

The Model 525 Pulse/Delay Generator boasts 2ns timing resolution and 1ppm accuracy, excellent timing characteristics for synchronizing multiple instruments in an experiment or gating high speed device imaging devices.  Other applications in this time domain include triggering lasers and laser drivers, gating sensors, detectors and DAQ, or simulation in RADAR and LIDAR test stations. In celebration of 55 years in business, the company is offering introductory pricing of $1963 / unit in small quantities. For a quote or additional details, call the factory at 800-234-7858 or Engineer Live Chat @ www.berkeleynucleonics.com - we are happy to discuss your application.

Model 525 6 Channel Pulse/Delay Generator
Model 525

Take the 5 decades of expertise in timing we tap into at Berkeley Nucleonics, and squeeze it into an compact module about the size of a peanut butter and jelly sandwich, and you have an exciting alternative to benchtop DDGs,” says Junior Choe
