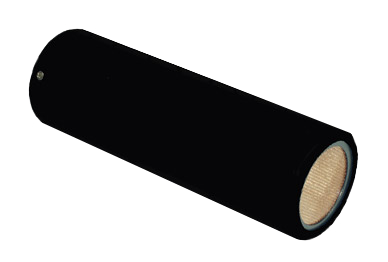

The ASP-2 is an excellent ALPHA detector with ZERO BACKGROUND in gamma fields up to 1 R/hr. Low density window of 5 mg/cm2 enables the high efficiency detection (40+% 2Pi) of alpha down to 3 MeV. Mounted in shock resistant metal housing.
Specifications
| GENERAL | Intended for general gamma (dose) measurements |
|---|---|
| Compatibility | ALL WB Johnson Instruments (others on request) |
| Operating Voltage | 600-1,000 vdc |
| Wall Thickness | 0.5 mg/cm2 |
| Range | 0-500,000 cpm |
| Detector | Zinc Sulfide - replaceable module |
| Energy Response | 3+ MeV Alpha |
| Sensitive Area | 2" (5 cm) |
| Finish | A powder coated aluminum housing |
| Dimensions | 2 1/2" dia x 12" L |
| Environmental | -20° F[-28° C]-140° F[60° C] | 5-95% RH non-condensing - IPX4 |
| Weight | 30oz |
