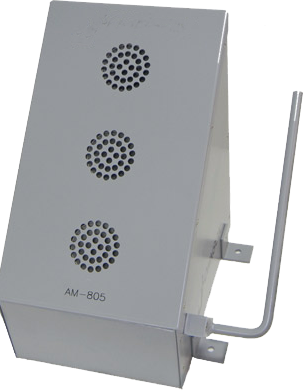

Three pancake GM detecotrs configured in a sturdy angled foot rest to make it easy to scan shoes and boots for contamination. Includes a mounted spindle on which to place "cling" wrap to cover the detector area and prevent dirt and contamination from falling onto the detectors. Works with any Johnson meter, but especially designed for the RML-200 Lab Counter-top Alarming Ratemeter.
| Compatibility | All Johnson survey meters & area monitors |
| Operating Voltage | 900 vdc |
| Window Density | 1.6mg/cm2 |
| Range | 0-500,000 cpm |
| Dead Time | 20μSec |
| Energy Response | Alpha-3.5MeV min, Beta-100keV min, Gamma-20keV-2MeV |
| Sensitive Area | 8.5" (21.6cm) x 2" (5cm) |
| Sensitivity to Cs-137 | 2,500 CPM/mR/hr |
| Dimensions | 9.5" (24cm) L x 11" (28cm) H x 7" (18cm) W |
| Weight | 3.6 lbs |
| Environmental | -20° F[-28° C]-140° F[60° C] | 5-95% RH non-condensing - IPX4 |
