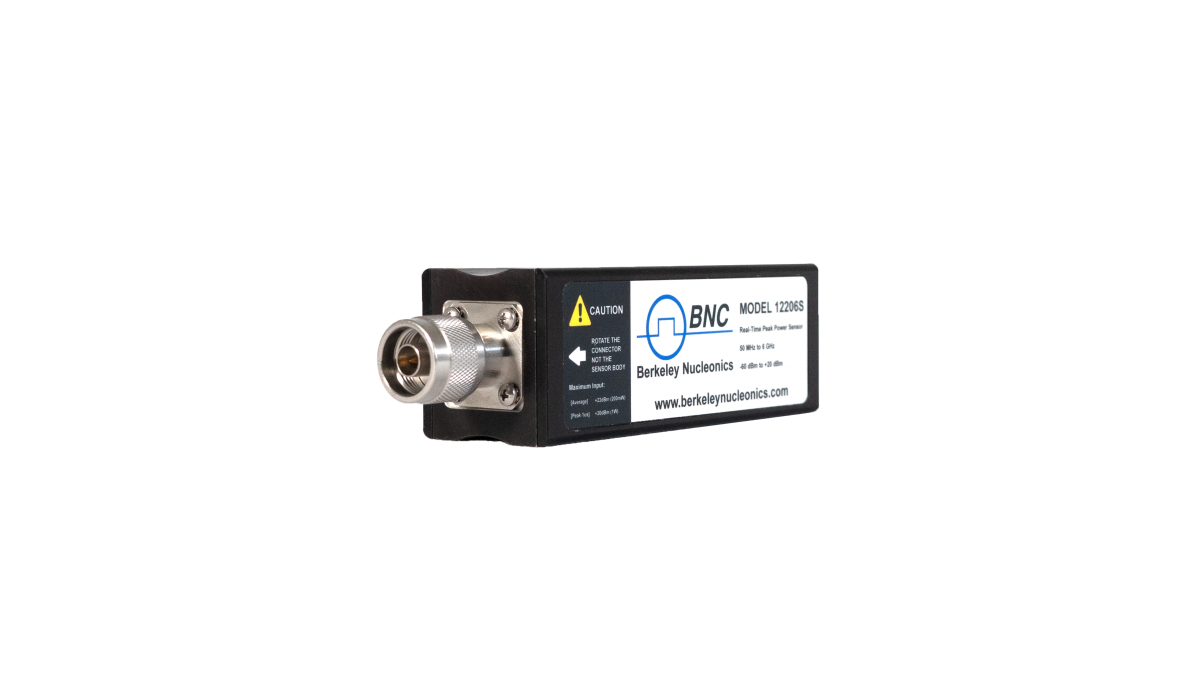

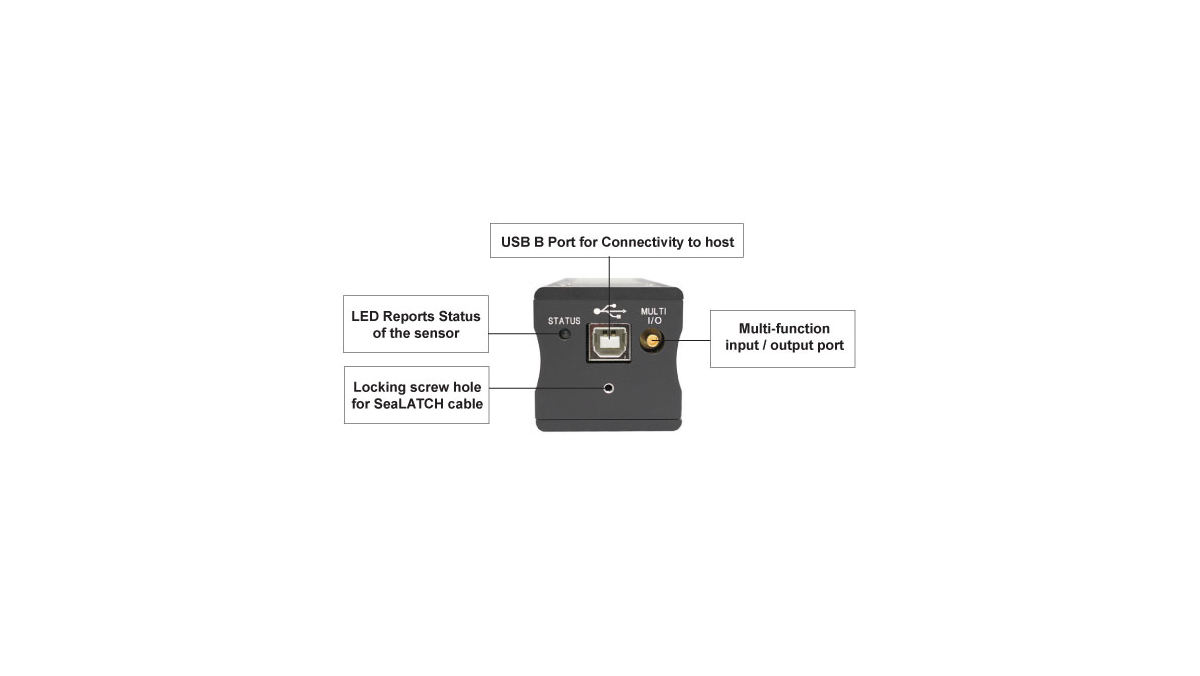

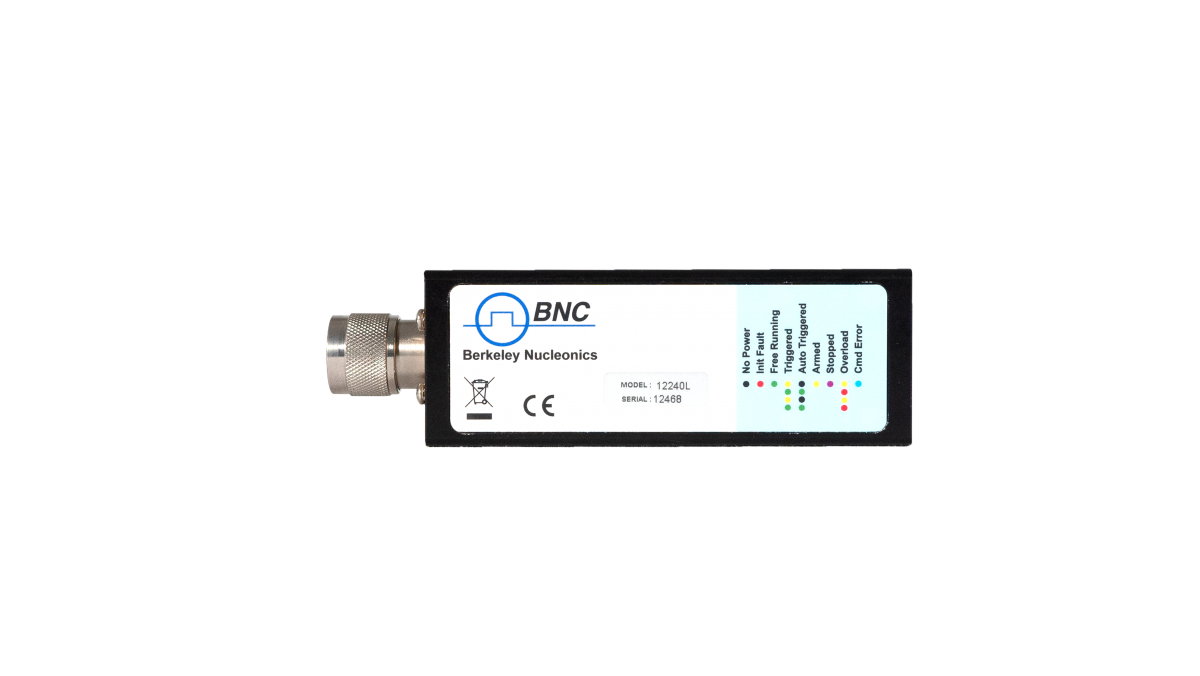

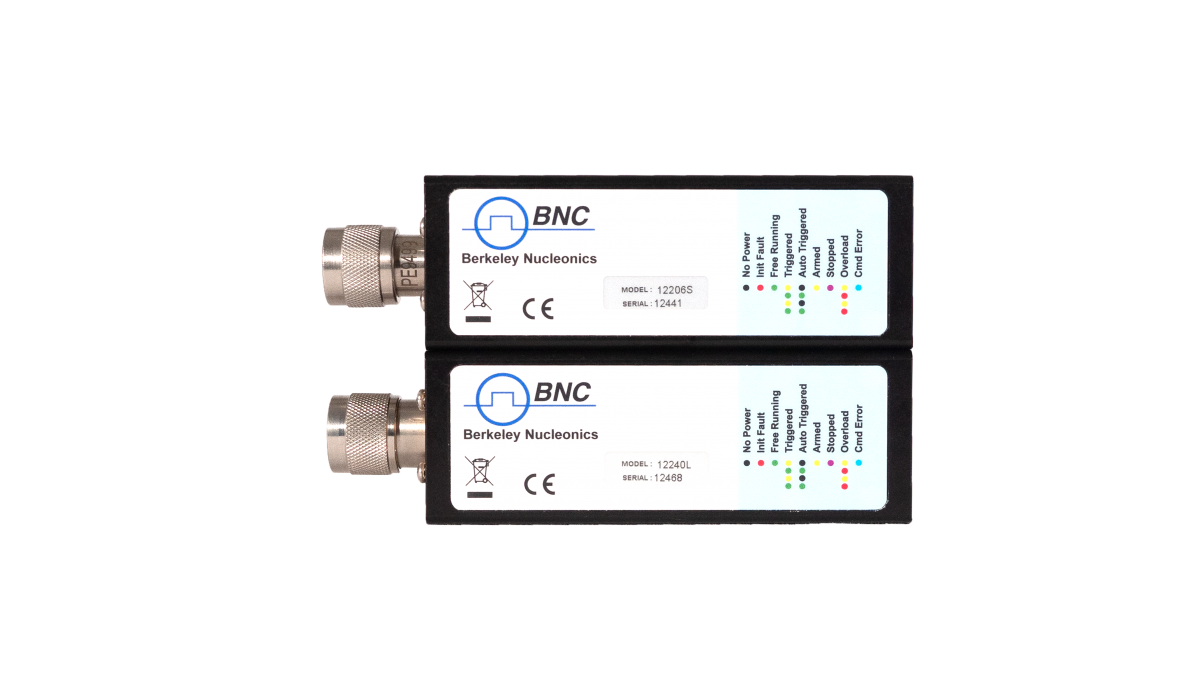

Model 12200 SeriesPulse/CW Real-Time Peak RF Power Sensors

The Model 12200 series of real-time, pulse profiling power sensors are the performance leaders in RF and microwave peak power measurement. They offer industry-leading performance with the widest video bandwidth, fastest rise times, finest time resolution, narrowest minimum pulse widths, highest pulse repetition rates, and superior measurement reading rates. In addition, the 12200 series sensors incorporate BNC’s unique real-time processing technology.

With superior performance and a small form factor, the Model 12200 series is ideal for many purposes ranging from design and verification, through manufacturing, to field installation and maintenance. The sensors are trusted by engineers and technicians at industry-leading companies to measure pulsed, bursted, and/or modulated signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), and consumer electronics (WLAN), as well as education and research applications.

Overview

Overview

Features

Applications

  • 6 GHz, 8 GHz, 18 GHz and 40 GHz Power Sensors
  • Up to 195 MHz video bandwidth with 3 ns rise time
  • Real-Time Power Processing with zero dead time
  • 100,000 measurements per second
  • Power Analyzer Suite with advanced measurement and analysis software
  • Crest factor, CCDF and statistical measurements
  • 10 GS/s effective sample rate
  • 100 MS/s continuous sample rate
  • Synchronized multi-channel measurements
  • Automated Test Equipment
  • Mobile Networks (4G, 5G, 6G, LTE)
  • WiFi, WiMAX
  • Research and Development
  • Manufacturing
  • Radar
  • Satellite
  • Telecommunications
  • Internet of things (Iot)
  • Quantum Computing
  • Amplifier Testing
  • Peak-to-Average Power Ratio (PAPR) Testing
  • Orthoginal Frequency Division Multiplexing (OFDM)
  • Travelling Wave Tube Amplifier (TWTA) Testing
Specifications

Quick Specs

12206S

12208S

12218S

12218L

12240S

12240L

RF Frequency Range 50 MHz to 6 GHz 50 MHz to 8 GHz 50 MHz to 18 GHz 50 MHz to 18 GHz 50 MHz to 40 GHz 50 MHz to 40 GHz

Dynamic Range

Average





Pulse



-60 to +20 dBm





-50 to +20 dBm



-60 to +20 dBm
 -53 to +20 dBm



-50 to +20 dBm
-43 to +20 dBm



-34 to +20 dBm





-24 to +20 dBm



-50 to +20 dBm





-40 to +20 dBm



-34 to +20 dBm





-24 to +20 dBm



-50 to +20 dBm





-40 to +20 dBm

Internal Trigger

        Range



       Min Pulse Width
       (Fast/Std)



       Max Rep Rate



-38 to +20 dBm



10 ns / 3 µs





50 MHz



-38 to +20 dBm



10 ns / 3 µs





50 MHz



-10 to +20 dBm



10 ns / 3 µs





50 MHz



-27 to +20 dBm



200 ns / 3 µs





5 MHz



-10 to +20 dBm



10 ns / 3 µs





50 MHz



-27 to +20 dBm



200 ns / 3 µs





5 MHz

Rise Time (fast/std) 3 ns / < 10 μs 4 ns / < 10 μs 5 ns / < 10 μs < 100 ns / < 10 μs 5 ns / < 10 μs < 100 ns / < 10 μs
Video Bandwidth (high/std) 195 MHz / 350 kHz 165 MHz / 350 kHz 70 MHz / 350 kHz 6 MHz / 350 kHz 70 MHz / 350 kHz 6 MHz / 350 kHz
Single-shot Bandwidth 35 MHz 35 MHz 35 MHz 6 MHz 35 MHz 6 MHz
RF Input Type N, 50 Ω Type N, 50 Ω Type N, 50 Ω Type N, 50 Ω 2.92 mm, 50 Ω 2.92 mm, 50 Ω
VSWR 1.25

1.25

1.34

1.34

2.00

2.00

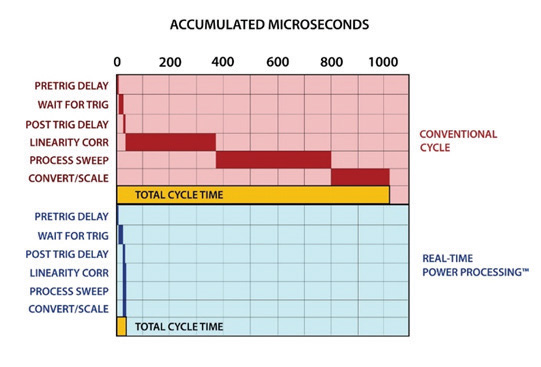

Comparison between conventional power measurement sample processing and Real-Time Power Processing

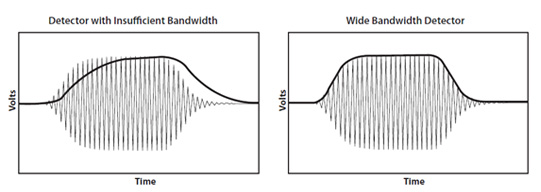

Detector Envelope Tracking Response

SOFTWARE POWER PROFILE


Up to eight 12200 Series Real-Time Power Sensors can be supported by the Power Profile Software.
In this example two sensors are connected.

Options

Model 12200 Series Pulse RF Power Sensor Configurator

Frequency Range: 6 GHz
8 GHz
18 GHz

40 GHz

Options: [-L] High Dynamic Range [-40dBm to + 20dBm]
Model 12106S
50 MHz to 6 GHz Pulse RF Power Meter
Dynamic Range: -50 to +20dBm
