588-OEM Board Level Pulse Gen.

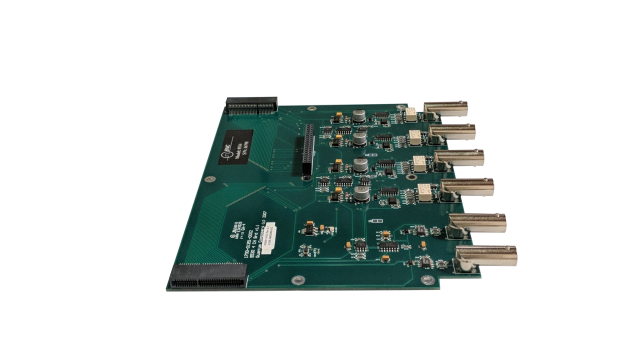

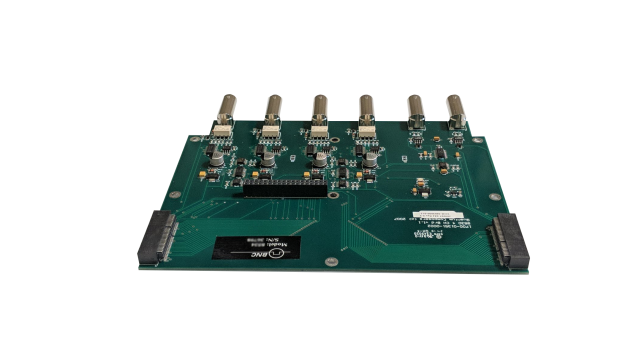

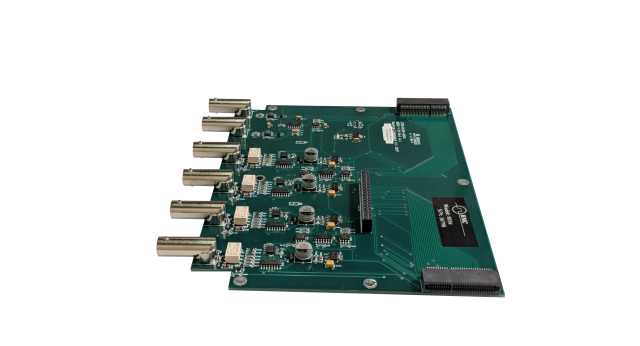

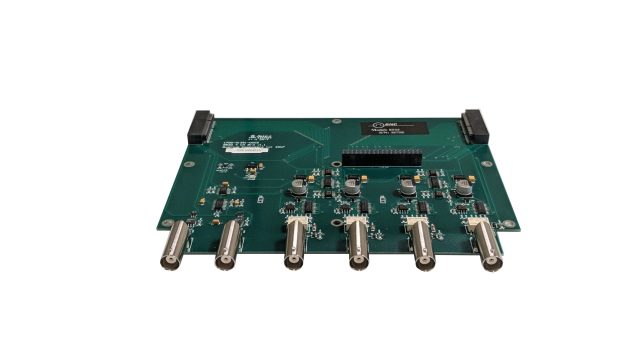

Model 588-OEMOEM Series Board Level Pulse Generator

The 588-OEM series board products retain all functionality of the standard Pulse Generator in an easy-to-integrate package. These boards provide a cost-effective method to create and synchronize multiple sequences, delayed triggering, or any precisely timed series of events. We offer optional computer interfaces for ease of programming and full integration support.

  • 1 ns or 250 ps timing resolution
  • Fully independent channel outputs
  • Computer Interfaces
  • Full Integration and Product Support Offered
  • 2 Year Warranty

There are two options for the OEM card level Digital Delay/Pulse Generator. There is a 1 ns option and a 250 ps option. The Model 588-OEM-1n offers several programming operations to meet a variety of interface requirements. The 1 ns delay resolution, along with all the other parameters, may be controlled using Serial, USB, or GPIB interface. The connectors are mounted on the side of the PC Board (card-edge connectors) and allow connections internally to your system or through panel mount configurations.

The Model 588-OEM-250ps offers control of 250 ps delay and width resolution, along with all other parameters, from a Serial, USB, or Ethernet connection. The connectors are mounted to the side of the PC Board (card-edge connectors) and allow connections internally to your system or through panel mount configurations.

Overview

Overview

Quick Specs

Applications

  • Channels: 2 (1 ns only), 4 or 8 Independent Channels
  • Resolution: 1 ns
  • Accuracy: 1.5 ns + 0.0001 delay
  • Jitter: < 400 ps channel to channel
  • Voltage: TTL / 20 V Adjustable
  • Memory: 12 Storage Slots
  • OEM System Integration
  • Explosive Testing
  • Airbag (Squibb) Testing
588-OEM-1n Pulse Generator

The Model 588-OEM-1n Series Digital Delay Pulse Generator Board offers 2, 4, or 8 independent outputs and is designed to provide cutting edge, yet cost-effective solutions to generate and synchronize multiple pulses for a variety of applications. The delay and pulse width for each channel are independent and digitally controlled, which make the instrument ideal for situations that require synchronizing a number of different events. Flexible operating modes allow complete control of pulse outputs, including continuous, duty cycle, burst, and single shot with external trigger/gate. More advanced features, such as multiplexing, allow the timing of all or several channels to be combined for complex pulse patterns. For automated test equipment, complete control of the instrument can be added to provide RS232, USB, and GPIB Interface or Ethernet. Full board integration and support is provided.

588-OEM-250p Pulse Generator

The Model 588-OEM-250p Digital Delay/Pulse Generator represents the latest in timing and synchronizing capabilities. The Model 588-OEM-250ps’s eight independent outputs, dual trigger/gate inputs and external clock reference input make it ideal for laser system timing applications. The system can directly phase lock to an external timebase up to 100 MHz in frequency and down to 20 mV in amplitude. This allows synching directly to a laser photodiode signal and provides complete system timing relative to the laser timing with low jitter. The 588-OEM-250p also provides a Clock Output that is capable of driving a 50 ohm load and can be used to provide a master timebase to other delay generators or equipment.

The core technology in the precision timing of the 588-OEM-250ps offers 250 ps Delay and Width resolution and 50 ps internal jitter. Optional Ethernet/USB interface, complex burst sequences, Divideby- N, Setting Profiles, Dual Triggers, Clock Divider, Pulse Picking, and Negative Delays allow users great flexibility in setting up an experiment or synchronizing multiple events. Full board integration and support is provided.

Specifications

PULSE GENERATION

Channel Modes Single Shot, Burst, Normal, Duty Cycle
Delay 0 to 1000 s
Negative delay 0 to -1000 s
Pulsewidth 10 ns to 1000 s
Resolution 1 ns
Accuracy 1.5 ns + 0.0001 delay
Timebase 50 MHz, 25 PPM crystal oscillator
RMS Jitter < 400 ps channel to channel
Burst mode 1 to 1,000,000

EXTERNAL TRIGGER/GATE

Rate DC to 5 MHz
Threshold 500 mV to 15 V
Input range 0 - 200 mV
Trigger slope Rising or falling edge
RMS jitter < 5 ns
Insertion delay < 150 ns

INTERNAL RATE GENERATOR

System modes Single Shot, Burst, Continuous, Duty Cycle
Rate (T0 period) 200 ns to 5000 sec. (0.0002 Hz to 5 MHz)
Resolution 10 ns
Accuracy 5 ns + 0.0001 x period
RMS jitter < 400 ps channel to channel
Burst mode 1 to 1,000,000 pulses

OUTPUTS

Outputs TTL/ CMOS, adjustable 2 - 20 V
Impedance 50 ohms
Slew rate > 0.5 V/ns
Overshoot < 100 mV + 10% of pulse amplitude

PROGRAMABLE TIMING GENERATOR

System modes Single Shot, Burst, Continuous, Duty Cycle
Control modes Internally triggered, externally triggered, and external gate
Output multiplexer Any/all channels may be multiplexed to any/all outputs
Delayed output 0 to 9,999,999 pulses
Timebase Same as internal rate generator

DELAYS

Range 0 to 1000 secs
Range 0 - 1000 s
Accuracy 1.5 ns + 0.0001 delay
Resolution 250 ps
RMS jitter < 400 ps
Pulse inhibit delay/output inhibit delay 120 ns / 50 ns

INTERNAL RATE GENERATOR

Timebase 100 MHz, low jitter PLL
Rate 0.0002 Hz to 10.000 MHz
Resolution 10 ns
Accuracy Same as timebase
RMS jitter 50 ps
Burst mode 1 to 9,999,999 pulses
Oscillator 50 MHz, 25 ppm
TTL/Adjustable Channel Output Impedance 50 ohm

TTL/CMOS MODE

Output Level 4.0V into kΩ (typ)
Rise time 3 ns typical
Slew rate > 0.5 V/ ns
Jitter 50 ps RMS

ADJUSTABLE MODE

Output Level 2.0 to 20 VDC into 1 kohm, 1.0 to 10 VDC into 50 ohms
Output resolution 10mV
Current 200 mA typical, 400 mA max (short pulses)
Slew rate > 0.1 V/ns
Overshoot < 100 mV + 10% of pulses amplitude

TRIGGER/GATE DUAL INPUT MODULE (standard)

Threshold 0.2 to 15 VDC
Maximum input voltage 60 V peak
Resolution 10 mV
Input impedance 1 Mohm + 40 pF or 50 ohm
Trigger insertion delay < 180 ns
Trigger jitter < 800 ps RMS
external clock in/out 10 MHz - 100 MHz

Shipping Dimensions 18x12x9"
Shipping Weight 5 lbs
Options

588-OEM-1n Series Options:

I-Pulse Increment Option

The (I) increment modes for the 588-OEM Pulse Generators are a pair of special modes which allows the delay and width of each channel to be incremented at the end of a burst of pulses.

Standard Communication Options

Serial, USB or GPIB interface

588-OEM-250p Series Options:

TZ50 - 50 Ohm Output Module

The TZ50 option allows a user to have a 50 ohm load on the output while maintaining an output amplitude of at least 4 Volts while in the TTL/CMOS mode.

DT15 - Dual Trigger Input

The DT15 module option allows the Gate input to double as a second trigger input.

I-Pulse Increment Option

The (I) increment modes for the 588-OEM Pulse Generators are a pair of special modes which allows the delay and width of each channel to be incremented at the end of a burst of pulses.

Standard Communication Options

Serial, USB or Ethernet interface
